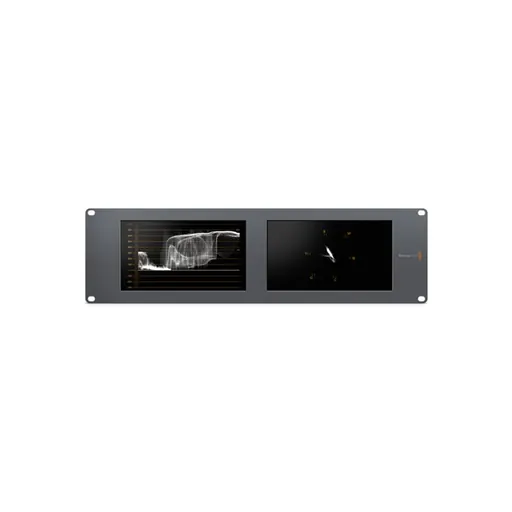

Blackmagic Design HDL-SMTWSCOPEDUO4K2 SmartScope Duo 4K 2

SKU KY-FA8A0A6AE451 · Unit: piece

SmartScope Duo 4K looks like a SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays.

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design HDL-SMTWSCOPEDUO4K2 SmartScope Duo 4K 2 SmartScope Duo 4K looks like a SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays. Each monitor is independent so can display any combination of scope or picture view! Connections SDI Video Input Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output. SDI Video Output 1 x 10 bit loop through SD, HD and 6G-SDI switchable. SDI Audio Input 16 channels embedded in SD, HD and UHD. SDI Audio Output 16 channels embedded in SD, HD and UHD. Multi Rate Support Standard definition SDI, high definition SDI and 6G-SDI. Tally 9-pin D connector Standards SD Format Support 525i29.97 NTSC, 625i25 PAL HD Format Support 720p50, 59.94, 60 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF23.98, 24, 25, 29.97, 30 1080i50, 59.94, 60 2K Format Support 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Format Support 2160p23.98, 24, 25, 29.97, 30 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M. Audio Sampling Television sample rate of 48KHz Video Sampling 4:2:2 and 4:4:4 Color Precision 8-bit Color Space YUV and RGB Computer Interface USB 2.0 for software updates and Ethernet for configuration Colorspace Conversion Hardware based real time. Scopes Luminance Waveform, Vectorscope, RGB Parade, YUV Parade, Histogram, Audio phase and level. Software Software Included Configuration utility for MAC and Windows. Internal Software Upgrade Via included firmware updater software. Physical Installation 3RU
