Blackmagic Design / Photo, video & audio equipment

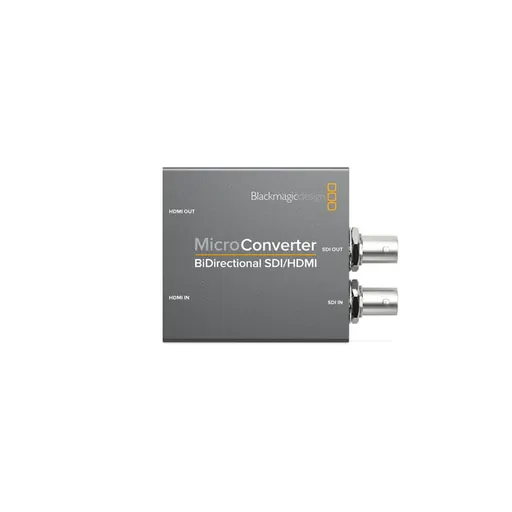

Blackmagic Design Blackmagic CONVBDC/SDIHDWPSU Micro Converter BiDirect SDI/HDMI 3G wPSU

SKU KY-EECC9B1D906D · Unit: piece

Order Basis Only. Kindly send Inquiry for Availability.

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic CONVBDC/SDIHDWPSU Micro Converter BiDirect SDI/HDMI wPSU Now you can simultaneously convert SDI to HDMI and HDMI to SDI in any combination of SD and HD formats up to 1080p60 at the same time! Each conversion direction can be a different SD or HD video standard, so it’s like getting two converters in one! The multi-rate 3G‑SDI input and output connections are compatible with virtually all professional broadcast equipment, including Level A and B devices. It even automatically detects all SD and HD formats! It can even be powered via USB or with the included international power pack. Connections SDI Video Inputs 1 x SD, HD or 3G-SDI. SDI Video Outputs Automatically matches the SD, HD or 3G-SDI HDMI video input. HDMI Video Inputs HDMI Type A in. HDMI Outputs HDMI Type A out. Multi Rate Support Auto detection of SD or HD. Updates, Configurations and Power Micro USB. Reclocking Yes Standards SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M SDI Video Rates SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD and 3G-SDI HDMI Video Standards 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Color Precision 4:2:2 HDMI Color Space YUV Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. Standards Software Control Mac and Windows™ software via micro USB. Internal Software Upgrade Via micro USB.
