Decimator Design / Multiviewer

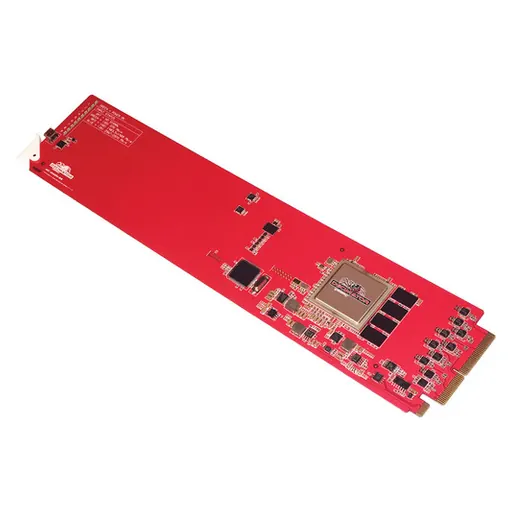

Decimator Design MC-DMON-9S 1 to 9 Channel (3G/HD/SD)-SDI MultiViewer with Custom Layouts

SKU KY-D7ADACCA2362 · Unit: piece

By Order Basis Only DECIMATOR DD-MC Highlights 9-Channel Multiviewer Processor 9x SD/HD/3G-SDI Inputs 1x SD/HD/3G-SD Output Individually Controllable Input Overlays openGear Form Factor Recallable Vie

Ask sales to confirm stock, configuration and compatibility.

Product description

Features Decimator's MC-DMON-9S 9-Channel openGear 3G/HD/SD Multiviewer lets you view up to nine sources on a single monitor in an openGear form factor. Useful in studio or A/V situations which employ openGear cards, the MC-DMON-9S can accept 9 SDI inputs of the SD, HD, or 3G variety. Each input auto-detects what kind of signal is being received in order to properly scale it to the monitor. Multiple viewing modes are built-in and recallable, and you can use Decimator's USB control panel to save and load custom presets. Supports both 3G-SDI level A and B on the input and output and allows conversion between levels A and B Includes standard layouts and supports custom layouts Customizable display overlays (can be enabled individually on each channel): 16 character UMD overlay, 16 channel audio metering overlay, format status overlay, safe action and title safe overlays, center cross, audio ID. Save and load custom layouts via USB Input switching with full-screen scaling Selectable output format in both full-screen and multi-viewer mode Low latency buffering for each input allowing non-synchronous inputs Auto-detection on all inputs Pass-Through mode allowing any of the 9 inputs to be selected and routed to the SDI output USB port for control and firmware updates openGear DashBoard for control
