ATEN / HDMI Cables

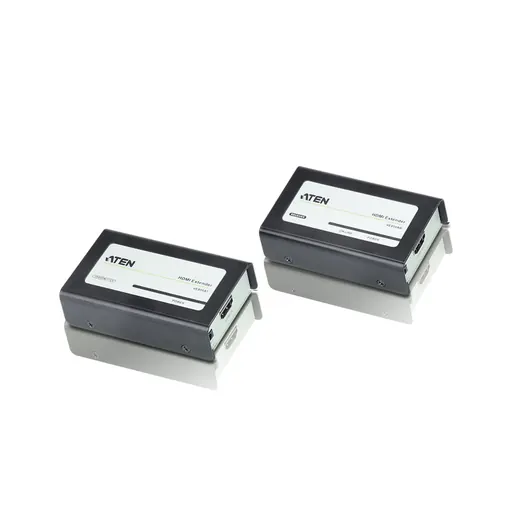

ATEN VE800A HDMI Cat 5 Extender (1080p@40m)

SKU KY-D702A77091AD · Unit: piece

Extends the distance between HDMI source and HDMI display Uses Cat 5e cable to connect the local and remote units Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m Superior video quality – 1920 x 1200

Ask sales to confirm stock, configuration and compatibility.

Product description

Function VE800AR VE800AT Video Output Interfaces 1 x HDMI Type A Female (Black) N/A Impedance 100 Ώ N/A Max. Distance 3 m (2L-7D03H) N/A Video Input Impedance N/A 100 Ώ Interfaces N/A 1 x HDMI Type A Female (Black) Max. Distance N/A 3 m (2L-7D03H) Video Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) 6.75 Gbps (2.25 Gbps Per Lane) Max. Pixel Clock 225 MHz 225 MHz Compliance HDMI (3D, Deep Color) HDCP Compatible HDMI (3D, Deep Color) HDCP Compatible Max. Resolutions / Distance Up to 1080p@40m; 1080i@60m Up to 1080p@40m; 1080i@60m Audio Output 1 x HDMI Type A Female (Black) N/A Input N/A 1 x HDMI Type A Female (Black) Connectors Power 1 x DC Jack 1 x DC Jack Power Consumption DC5V&0.608W&3BTU DC5V&0.9W&4BTU Environmental Operating Temperature 0 - 50°C 0 - 50°C Storage Temperature -20 - 60°C -20 - 60°C Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Metal Weight 0.16 kg ( 0.35 lb ) 0.16 kg ( 0.35 lb ) Dimensions (L x W x H) 9.00 x 5.50 x 2.20 cm (3.54 x 2.17 x 0.87 in.) 9.00 x 5.50 x 2.20 cm (3.54 x 2.17 x 0.87 in.) Carton Lot 5 pcs 5 pcs Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Package Contents 1x VE800AT HDMI Extender 1x VE800AR HDMI Extender 2x Power Adapters 1x Mounting Kit 1x User Instructions
