Mipro / Microphone

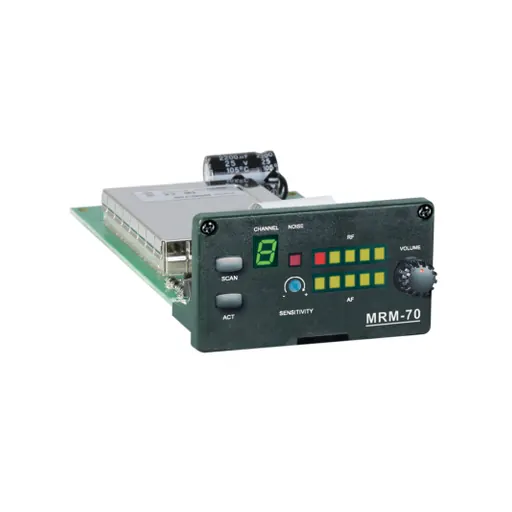

Mipro MRM-70 UHF Single-Channel Diversity Receiver Module

SKU KY-D26090FB10BF · Unit: piece

Inquire for Availability / By Order Preset 16 auto-scannable frequencies. 『SCAN』and『ACT』, interference warning indicator and “Sensitivity” adjustor. Easy-to-read LED channel display and 5-segment RF a

Ask sales to confirm stock, configuration and compatibility.

Product description

Frequency Range UHF 480 ~ 934 MHz (country dependent) Bandwidth 24 MHz Preset channels 16 Channel Set-up Scan & ACT Sync Display Status Channel, RF & audio meters and interference warning indicator Receiving Mode CPU-controlled diversity receiving Sensitivity 10 dB μ V at S/N > 80 dB S/N Ratio > 100 dBA T.H.D. < 0.5% @ 1 kHz (Dev.=32 kHz) Frequency Response 60 Hz ~ 15 kHz (Overall system) Squelch Control "PiloTone & NoiseLock" dual-squelch circuits Audio Output 610 mV rms Power Supply 12 ~ 15 V DC Dimensions (W × H × D) 75 × 35 × 141 mm Weight Approx. 126 g Note Refer to actual product in the event of product description discrepancy.
