Blackmagic Design BDLKMICROREC DeckLink Micro Recorder

SKU KY-D167B1E0F8EB · Unit: piece

Order Basis Only. Kindly send Inquiry for Availability.

Ask sales to confirm stock, configuration and compatibility.

Product description

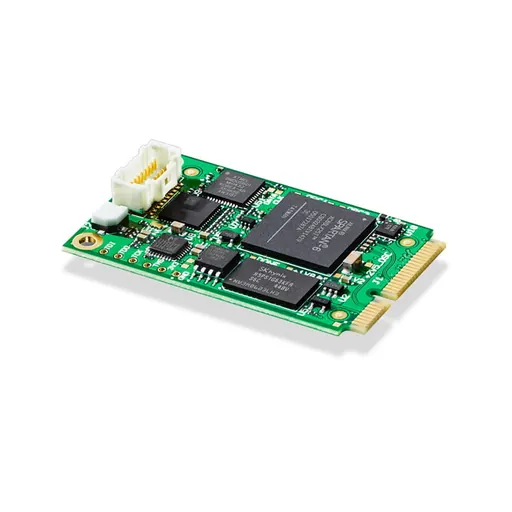

Blackmagic Design BDLKMICROREC DeckLink Micro Recorder The DeckLink Micro Recorder is a low-latency miniature video capture card for all SD and HD formats up to 1080p30. Compatible with computers that have a 1-lane Gen 1 Mini PCIe slot, SDI or HDMI video inputs can be added using the built in Hirose® and Molex® connectors. Connections PCIx1 Gen 1 PCI Express® Mini Card Electromechanical Specification. Note, however, that the HDMI connector height (8.0mm) exceeds the 3.0mm height specification. Standards SD Format Support 525i/59.94 NTSC, 625i/50 PAL. HD Format Support 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30. Video Sampling 4:2:2. Color Precision 8, 10-bit YUV 4:2:2. Compliance SMPTE 259M, 292M, 296M, and HDMI.
