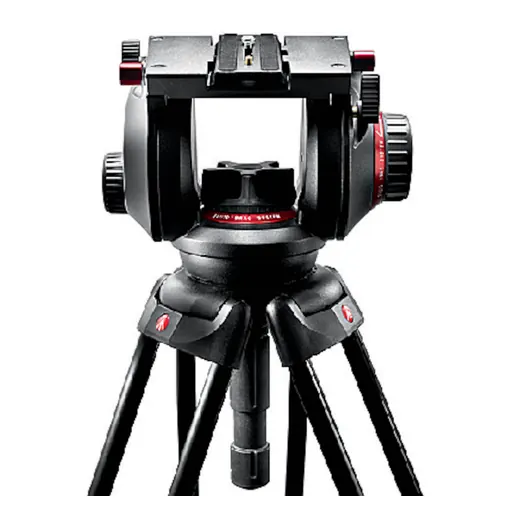

Manfrotto 509HD Fluid Video Head with 100mm Half Ball

SKU KY-CCDE796ECE84 · Unit: piece

Review quotation list →

Ask sales to confirm stock, configuration and compatibility.

Product description

Manfrotto 509HD Fluid Video Head with 100mm Half Ball A perfect balance of design and performance, the Manfrotto 509 fluid video head with incorporated 100mm half ball puts you in control. Stability, strength and speed to suit any condition. The head is made from durable aluminium. When you’re setting up a shot, the Manfrotto head offers unrivalled stability thanks to variable fluid drag system in both pan and tilt movement which allows smooth shooting, and a 4-step counterbalance system up to 12,8Kg at 55mm C.O.G or 8,5 kg at 125mm C.O.G. The head has a maximum payload of 13.5kg at 55mm C.O.G or 9Kg at 125mm C.O.G. Easy link 3/8'' thread connections allow an external monitor or other accessory equipment to be fitted. The 509 features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast. Levelling is simple thanks to the 100mm diameter half ball and backlit levelling bubble. SPECIFICATIONS: Weight 137.55 oz Collection/Series 509 Material Aluminum Safety Payload Weight 29.76 lbs Counterbalance Weight 18.74 lbs Tilt Drag continuously adjustable from 0 to max level Pan Drag continuously adjustable from 0 to max level Plate Type 509PLONG Ball Flat 100 Ball Center of gravity 4.92 in Front Tilt -60° / +90° Bubble Spirit Level (No.) 1 Accessory Compatibility 502HLV; 509HLV Top Attachment 1/4″ screw, 3/8″ screw Powered by (batteries) Lithium Certifications WEEE; RoHS Color Black Easy Link Yes Head Type Video/Fluid Head Maximum Working Temperature 60 Minimum Working Temperature -20 Pan Bar Included Yes Panoramic Rotation 360 Quick Release Yes Working Height 7.09 in
