Feelworld D71 PLUS Dual 7 3 RU Rackmount 4K HDMISDI Monitor

SKU KY-BF6D3D464C5B · Unit: piece

Key Features Two 7" 1900 x 1200 IPS Displays 3G-SDI, HDMI, Composite BNC I/O Up to 4K Input via HDMI, 1080p via SDI LAN Control of up to Multiple Units 160° L/R Viewing Angle RCA Audio Inputs, Headpho

Ask sales to confirm stock, configuration and compatibility.

Product description

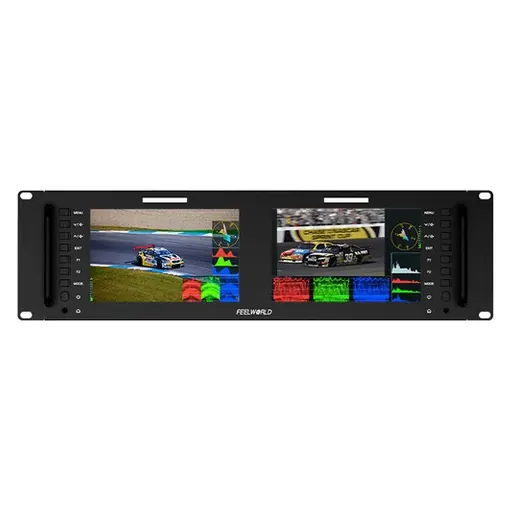

Featuring two 7" displays in an ultra-slim 3 RU design and offering a LAN port for network control, the D71 PLUS Dual 7" 3 RU Rackmount 4K HDMI/SDI Monitor from FeelWorld is designed to provide efficient broadcast monitoring of up to two video signals. This D71 PLUS model has 3G-SDI, HDMI, and composite BNC inputs and outputs per display, as well as RCA audio inputs for each panel. A headphone output is provided for each panel for monitoring audio. There's a single tally port on the rear and a three-color tally light above each display. The displays are IPS panels with a 1920 x 1200 resolution and 160° wide viewing angle, providing for more consistent monitoring. Over the LAN port, multiple D71 PLUS units can be controlled at the same time via a single control software. The D71 PLUS comes in a metal housing that allows for optimal heat dissipation and has durable handgrips on the sides for convenient handling when installing into or removing from a rack. A variety of built-in image analysis functions include peaking focus assist, check field, pixel-to-pixel, zoom all, and more, and function buttons are provided on the front panel. A barrel input and 4-pin XLR port are provided on the rear to power the unit. Key Features Two 7" 1920 x 1200 resolution IPS displays in an ultra-slim 3 RU design LAN port for GPIO network control of up to multiple units 3G-SDI, HDMI, and composite BNC I/O Up to 1080p60 signal input via 3G-SDI, up to DCI 4K via HDMI 160° viewing angle 450 cd/m² brightness 1100:1 contrast ratio RCA audio inputs Headphone outputs Tally port Three-color tally light above each display Three user-assignable function buttons per display DC barrel / 4-pin XLR power ports (12 VDC power adapter included) Metal housing allows for optimal heat dissipation Image Analysis Tools Peaking focus assist (red highlight over parts of the monochrome image) Check field (red, green, blue, mono) Pixel-to-pixel Center marker Safe marker (80, 85, 90, 93, 96, 2.35:1) Image flip (horizontal, vertical, horizontal/vertical) Image freeze Zoom all U/D and L/R zoom Custom color temperature
