Roxtone / Photo, video & audio equipment

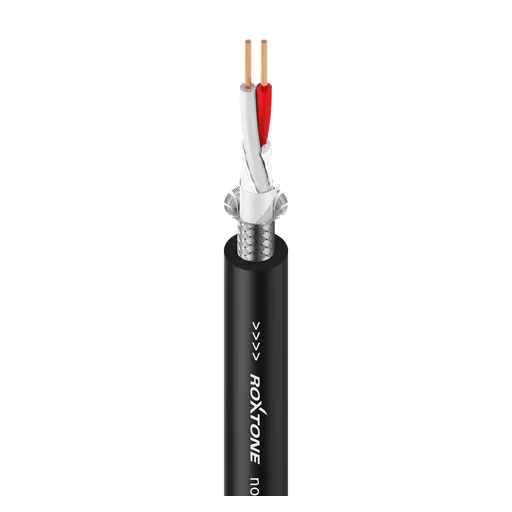

Roxtone MC010 328 ft. / 100m Balanced Bulk Microphone Cable

SKU KY-BA401E694D76 · Unit: piece

Features High Transmission Quality Good Protection High Flexbility Specifications Size: 328 ft. /100m

Ask sales to confirm stock, configuration and compatibility.

Product description

Features High transmission quality through the use of OFC stranding with a large wire diameter of 2 x 0.30 mm² Very low capacity due to the PE insulation Good protection due to the dense copper braided shielding High flexibility makes it easy to wind Applications Stage Mobile Studio Installations Cable Colour Black Technical Data MC010 Jacket, diameter PVC 6.5 mm AWG 22 No. of inner conductors 2 x 0.30 mm² Copper strand per conductor 38 x 0.10 mm Conductor insulation PE 1.50 mm Shielding tin plated copper braided shielding with 128 x 0.10 mm Shielding factor 95% Temperature range min. -20°C Temperature range max. +70°C Packaging 100/300 m roll Electrical Data Capac. cond./cond. per 1 m 56 pF Capac. cond./shield. per 1 m 122 pF Cond. resistance per 1 m 56 mΩ Shield. resistance per 1 m 23.5 mΩ
