Blackmagic Design / Photo, video & audio equipment

Blackmagic Design HDL-SMTVDUO2 SmartView Duo 2

SKU KY-B9680940D200 · Unit: piece

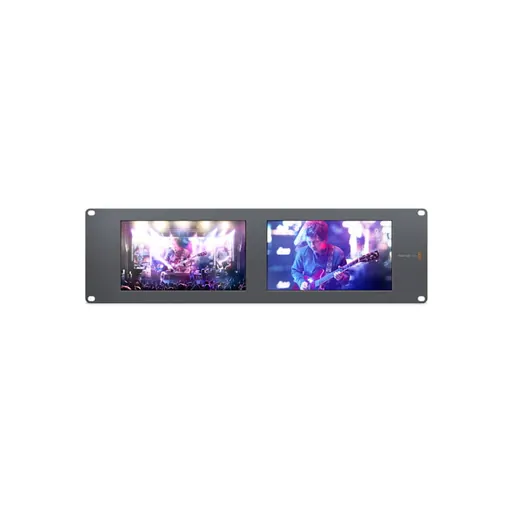

Featuring two large independent 8 inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. SmartView Duo is perfect for post production, broadcast a

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design HDL-SMTVDUO2 SmartView Duo 2 Featuring two large independent 8 inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. SmartView Duo is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo you can install SDI monitoring everywhere you need! Connections SDI Video Input Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output. Multi Rate Support Auto detection of 2K, HD or standard definition inputs. Updates and Configuration Via USB 2.0 high speed (480 Mb/s) Ethernet 10/100 BaseT with loop through. Tally 9-pin D connector Standards SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M. SDI Color Space REC 601, REC 709 SDI Auto Switching Automatically selects between SD, HD and 3 Gb/s SDI. Video Sampling 4:2:2 and 4:4:4 SDI Format Support 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Format Support 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Software Internal Software Upgrade Via included firmware updater software. SmartView Utility Software Via USB or Ethernet.
