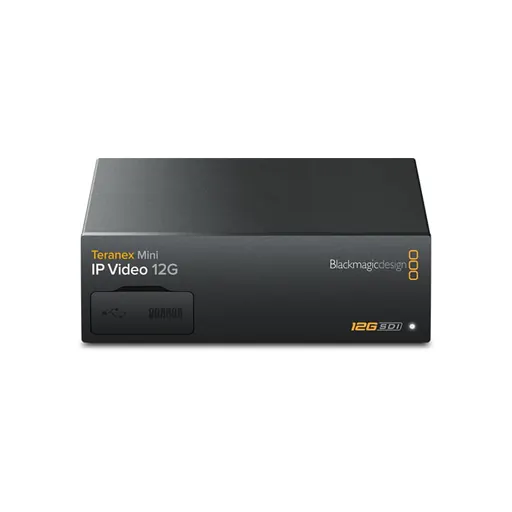

Blackmagic Design CONVNTRM/OB/IPV Teranex Mini - IP Video 12G

SKU KY-B2DF91763577 · Unit: piece

Order Basis Only. Kindly send Inquiry for Availability.

Ask sales to confirm stock, configuration and compatibility.

Product description

Black Magic Design CONVNTRM/OB/IPV Teranex Mini - IP Video 12G Now you can convert video to IP and route it over your existing ethernet network, or you can convert IP video back to SDI. Teranex Mini IP Video 12G uses standard Blackmagic Videohub software and hardware control panels to configure and switch IP video over ethernet as easily as SDI signals! You get 12G-SDI and the low latency broadcast quality TICO codec so you can route HD over the built in gigabit ethernet connection or Ultra HD over 10G ethernet with an optional 10G SFP! SPECIFICATIONS: Connections SDI Video Inputs 1 x 10-bit HD-SDI, 6G-SDI and 12G-SDI SDI Video Outputs 2 x 10-bit HD-SDI, 6G-SDI and 12G‑SDI Ethernet Gigabit ethernet supports 3G-SDI up to 1080p60 using TICO encoding/decoding. Optional 10G optical data ethernet supporting Ultra HD up to 2160p60 using TICO encoding/decoding. Multi Rate Support Auto detection of HD-SDI, 6G-SDI or 12G‑SDI. Updates USB 2.0 high speed (480Mb/s) interface or via Ethernet. Configuration Ethernet or USB 2.0 for firmware updates and IP address setting. Reclocking On all SDI outputs, auto switching between high definition, 6G-SDI or 12G-SDI video. Standards HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60 Automatic detection of Level A or Level B SDI on 1080p50, 1080p59.94 and 1080p60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4K DCI 25p4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601. SDI Video Rates SDI video input is switchable between high definition, ultra high definition and 4K. SDI switches between 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G‑SDI. SDI Video Sampling 4:2:2 plus 4:4:4 up to 4K DCI 30p SDI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit. SDI Color Precision 10-bit 4:2:2 and 4:4:4 SDI Color Space YUV or RGB for inputs, YUV for SDI outputs. SDI Auto Switching Automatically selects between HD-SDI, 6G-SDI and 12G‑SDI. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
