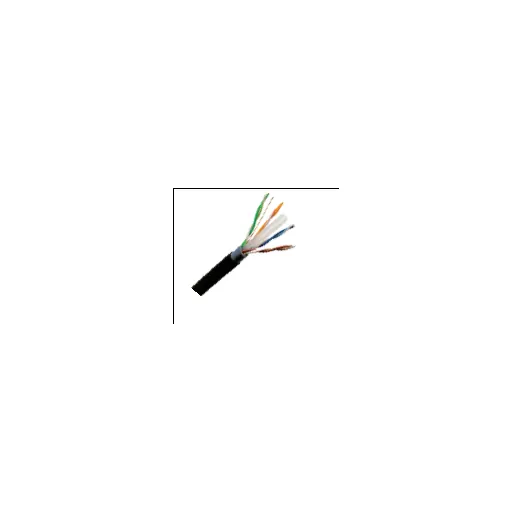

AD-Link AD-OU604-C (1 PER ROLL) — • UTP CAT6E 305m0.5mm CCA(Black)

SKU KY-B1A886D94B13 · Unit: piece

• UTP CAT6E 305m0.5mm CCA(Black)

Ask sales to confirm stock, configuration and compatibility.

Product description

• UTP CAT6E 305m0.5mm CCA(Black) • InnerConductor thickness: 0.5mm • Stretching Resistance: (max)450N • Conductor size: 23AWG • Impedance: 100±15%Ω at 1~250MHz • Conductor material: CCA • DC Resistance Imbalance: 2.50% • Insulation Material: PE • Transmission Velocity 66% • No. of Conductor: 4P • Working Capacitance(Max.): • Jacket: HDPE (max)45ns/100m • Filler: PE Cross • Insulation Resistance: ≥5000MΩ.km • Insulation Jacket: 0.18mm Jacket • Operating Temperature:'-40 °C -+70 °C • Jacket Thickness: 0.65mm(±0.02mm)
