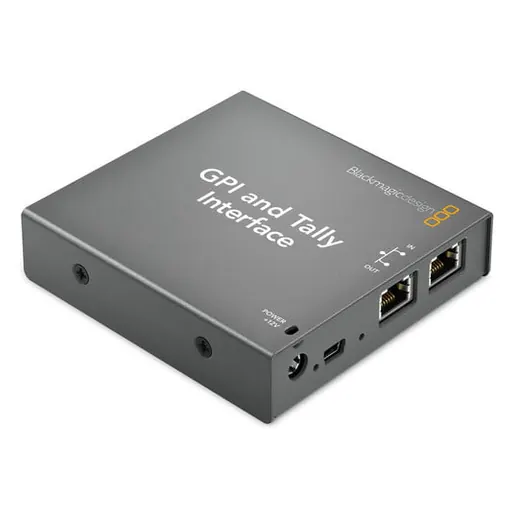

Blackmagic Design SWTALGPI8 GPI and Tally Interface

SKU KY-B10103FF6C4A · Unit: piece

*Displays tallies for indicating the on-air status of video signals *8 contact closure inputs & 8 contact closure outputs *Compatible with ATEM switchers and Videohub routers *Connect to multiple inte

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design SWTALGPI8 GPI and Tally Interface The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs. Displays tallies for indicating the on-air status of video signals 8 contact closure inputs & 8 contact closure outputs Compatible with ATEM switchers and Videohub routers Connect to multiple interfaces offering enhance flexibility in operation SPECIFICATIONS: Connections dd Contact Closure 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs Inputs Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA) Outputs Mechanical relay contact closure to ground (maximum 30 V @ 1 A) Ethernet 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment Computer Interface 1 x USB 2.0 high speed interface for configuration and firmware updates Extras Software Included Configured via ATEM Switcher utility Firmware Upgrade Firmware built into software driver. Loaded at system startup or via updater software Operating System Microsoft Windows 7 and Apple Mac OS X Power Supply 12 V power supply included with international socket adapters for all countries
