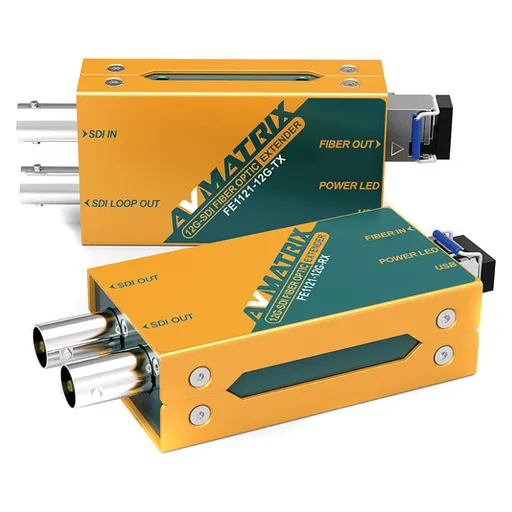

AVMatrix FE1121 12G-SDI Fiber Optic Extender Transmitter/Receiver Set

SKU KY-AC3942A443D2 · Unit: piece

AVMATRIX FE1121 Highlights Up to 4K60 Signal Extender Transmits UHD 4K60 up to 6.2 Miles 12G/6G/3G-SDI to LC Simplex Fiber Cable Dual 12G-SDI Outputs on Receiver SDI Equalization & Re-Clocking Hot-Plu

Ask sales to confirm stock, configuration and compatibility.

Product description

AVMATRIX FE1121-12G Highlights Up to 4K60 Signal Extender Transmits UHD 4K60 up to 6.2 Miles 12G/6G/3G-SDI to LC Simplex Fiber Cable Dual 12G-SDI Outputs on Receiver SDI Equalization & Re-Clocking Hot-Pluggable SFP Module with LC Port 2 x USB Power Supplies Features The 12G-SDI Fiber Optic Extender from AV Matrix extends HD/SD signals up to 12G-SDI using your fiber optic cable network. This transmitter and receiver set has a range of up to 6.2 miles and features dual 12G-SDI outputs on the receiver. Supporting all SDI video resolutions up to 4K60 plus embedded audio and metadata, this compact set is compatible with single-mode LC simplex fiber cable.Features include SDI equalization, hot-pluggable SFP modules with LC connectors, up to 32-channel embedded audio support, and two included USB power supplies. Features Extends HD/SD signals up to 12G-SDI, 4K60 over single-mode LC fiber optic cable Supports a range of up to 6.2 miles SDI input and loop out, LC single-mode fiber output on transmitter LC single-mode fiber input, dual SDI outputs on receiver Supports metadata and 32/16-channel embedded audio Signal re-clocking Compact, USB-powered form
