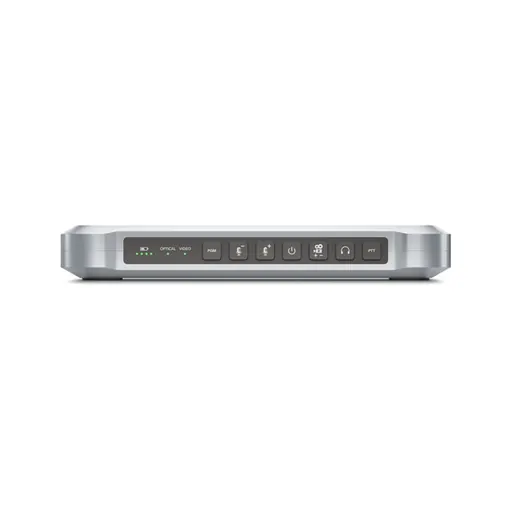

Blackmagic Design SWRCONV ATEM Camera Converter

SKU KY-94563D54EF4A · Unit: piece

ATEM Camera Converter converts your camera’s SDI or HDMI output to optical fiber, with embedded external audio and talkback from the camera position. The machined aluminum design is lightweight, stron

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design SWRCONV ATEM Camera Converter Get everything you need for cameras in live production with a single converter! Connect your camera’s SDI or HDMI outputs for conversion to optical fiber, while your switcher program feed can be fed back via optical fiber for camera monitoring. ATEM Camera Converter includes an internal battery, talkback, tally, and microphone inputs! Connections SDI Video Input 1 x 10 bit SD/HD switchable. SDI Video Output 1 x 10 bit SD/HD switchable. HDMI Video Input 1 x HDMI type A connector. HDMI Video Output 1 x HDMI type A connector. Talkback Audio 1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones, compatible with iPhone headsets. Analog Audio 2 x balanced 1/4" TRS connectors (stereo) microphone level in. When connected, replaces audio from SDI In or HDMI In. Optical Fiber Video Input 1 x single mode SD/HD switchable with LC connector. Optical Fiber Video Output 1 x single mode SD/HD switchable with LC connector. Optical Fiber Audio Input 1 x single mode camera audio inputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio. Optical Fiber Audio Output 1 x single mode camera audio outputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio. Computer Interface 1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control. Standards SDI Format Support 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 2K Format Support 1 2K DCI 24p, 2K DCI 25p HDMI Format Support 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 59.94, 60 SDI Compliance SMPTE 259M, SMPTE 292M. Audio Sampling Television standard sample rate of 48Khz,24 bit A/D conversion. Video Sampling 4:2:2 Color Precision 10‑bit Color Space REC 601, REC 709 Multiple Rate support SDI and HDMI are switchable between standard definitlon and high definition
