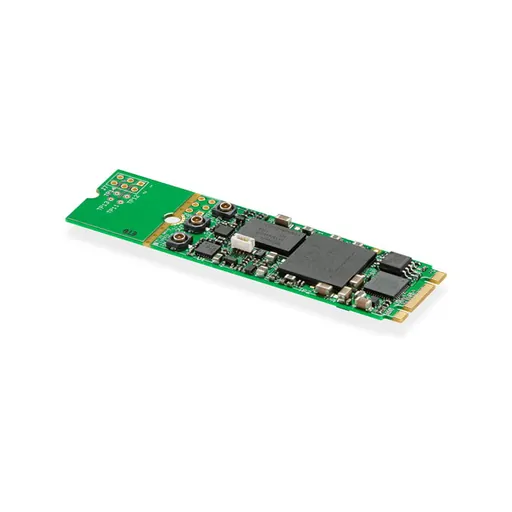

Blackmagic Design BDLKMICROSDI DeckLink SDI Micro

SKU KY-8EFC7A90B070 · Unit: piece

Order Basis Only. Kindly send Inquiry for Availability.

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design BDLKMICROSDI DeckLink SDI Micro Miniature M.2 card with 3G‑SDI connections for simultaneous capture and playback in all SD and HD formats up to 1080p60. DeckLink SDI Micro also includes Black Burst and Tri‑Sync reference input and its miniature size makes it great for use on portable solutions which are based on compact computers! Connections M.2 M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280. Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601.
