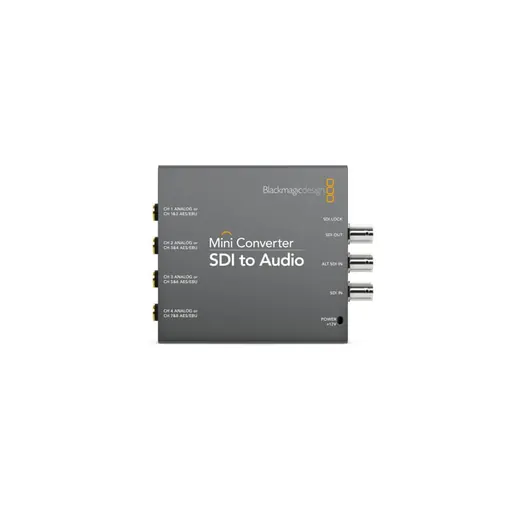

Blackmagic Design CONVMCSAUD Mini Converter - SDI to Audio

SKU KY-8EEB666F57E9 · Unit: piece

Review quotation list →

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design CONVMCSAUD Mini Converter - SDI to Audio The perfect way to de‑embed audio from any SDI source in SD and HD formats up to 1080p60! Audio is output on ¼" connectors for balanced analog and AES/EBU audio output to equipment such as mixers, analog decks, audio monitors and more. Mini Converter SDI to Audio is the ideal SD/HD SDI audio de‑embedder for when you don’t need the cost of the Ultra HD model! Connections SDI Video Inputs 1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x SDI Loop Output. Analog Audio Outputs 4 channels of professional balanced analog audio. Digital Audio Outputs 8 channels of professional balanced AES/EBU audio. SDI Redundant Inputs Automatically switches over if main SDI input is lost. Multi Rate Support Auto detection of SD, HD or 3G‑SDI. Updates and Configuration Via USB 2.0 high speed. (480 Mb/s) Reclocking Yes Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, ITU‑R BT.656, ITU‑R BT.601 SDI Video Rates SDI video connections are switchable between standard definition and high definition. SDI Video Sampling 4:2:2, 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2, 4:4:4 SDI Color Space YUV, RGB SDI Auto Switching Automatically selects between SD, HD, and 3G‑SDI. Software Software Control Mac™ and Windows™ software upgrade via USB. Internal Software Upgrade Via included updater application.
