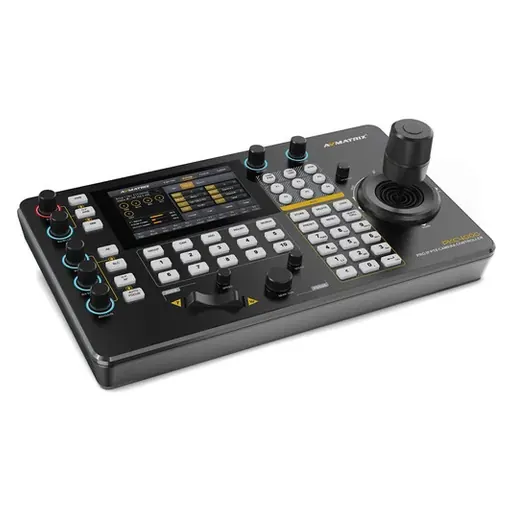

AVMatrix PKC4000NDI IP & Serial PTZ Camera Controller with NDI 1

SKU KY-8D947203129A · Unit: piece

Key Features Pan/Tilt/Zoom/Lock PTZ Controls NDI, IP & Serial Communication Control up to 7 Serial Cameras Control up to 100 NDI, IP Cameras VISCA/VISCA-over-IP/Pelco-P & D Support Power-over-Ethernet

Ask sales to confirm stock, configuration and compatibility.

Product description

Control up to 100 PTZ cameras with a single operator using NDI, IP, or serial with the IP & Serial PTZ Camera Controller with NDI from AVMATRIX. The controller offers joystick and button control for up to 100 PTZ cameras over IP and up to 7 cameras via serial, and it can control up to 10 groups of 10 cameras in each group. Buttons and Joystick Physical control features include glowing buttons for working in the dark, six user-assignable keys for quick function access, a 4D joystick, a rocker for smooth in/out zooms, 255 programmable camera presets, 10 quick presets, and numerous knobs and buttons. Control Protocol Options Control protocol support includes NDI, VISCA, VISCA-over-IP, ONVIF, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen. The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras, and it supports tally/GPIO input. Bright 5" Touchscreen The PTZ controller features a bright touchscreen that allows you to control settings and camera movements directly on the screen. You can also monitor camera previews in real time. Power Options You can power the controller using the included power adapter or via PoE on supported networks. Real-Time Preview The controller allows decoding via NDI, RTSP, and ONVIF, which allow simultaneous real-time previews of your camera video streams on the controller's 5" display. You can also record and playback the cameras' paths into complex presets, so you don't have to control the camera manually. Switcher Integration The controller can sync with AVMATRIX switchers and tally systems via GPIO, syncing your camera operations with ease. A tally connector is included with the controller.
