Magnustek / Camera

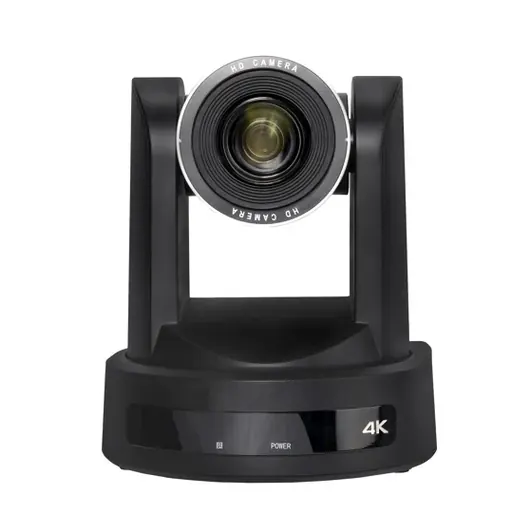

Magnustek MG400 4K UHD PTZ Camera 20x Zoom SDI/USB/HDMI/NDI output with AI Tracking

SKU KY-84BBC2C19BEE · Unit: piece

Camera Performance

Ask sales to confirm stock, configuration and compatibility.

Product description

Camera Performance Precise positioning, quiet and smooth PTZ control By adopting high accuracy Algorithm for PTZ Control, precise location(±0.1°), it works extremely quiet and moves smoothly and very quickly to designated position. Real 4K UHD image Adopt 1/2.5 inch, 8.51 magepixel HQ “Exmor R” CMOS Sensor, achieve 3840×2160 high quality image with super high resolution. Focus on meeting the need for picture fluency while ensuring the the ultra-high definition. Low noise and high SNR: Adopt advanced 2D&3D noise reduce technology and low noise CMOS sensor to reduce the noise. Various optical zoom 12xdigital zoom 4KP30 HDMI video output Support 4KP30/25, 1080P60/50/30/25, 720P60/50 etc.HD video formats. 4KP30 USB3.0 video output Support 4KP30/25, 1080P30/25, 720P30/25 etc.HD video formats. 4KP30 network video output Support 4KP30/25, 1080P30/25, 720P60/50etc.HD video formats. 3G-SDI video output Support 1080P60/50/30/25, 720P60/50etc. HD video output. 255 preset positions 255 positions can be preset through serial port, including level, pitch, zoom to preset, even if the camera is powered off, the preset data can be saved. Multi-functional remote controller Equipped with simple remote control, it can not only use for level, pitch and zoom control, but also can set the parameters through remote control menu. OSD Chinese/English menu function Various OSD menu, feasible for remote controller to control Chinese/English OSD menu. Camera Specifications Camera Optical Zoom 20X Signal system 3840×2160P30/25, 1080P60/50/30/25, 1080I60/50, 720P60/50 Sensor 1/2.5 inch HQ CMOS sensor, 8 magepixels Scanning mode progressive Digital zoom 12x Minimum illumination Support ultra-low illumination：[email protected](color), [email protected]（b&w） Shutter speed 1/30s ~ 1/10000s White balance Indoor/Outdoor/Auto/Manual BLC Yes DNR 2D&3D DNR SNR ≥52dB Horizontal Fov 2.9°（N）--58°（W） Pan rotation ±170º Tilt rotation -30° ~ +90° Pan control Speed 1 º/s ~ 100 º/s Tilt control Speed 1 º/s ~ 60 º/s Image flip Yes Preset number 255 Accuracy of preset ±0.1° Input/Output Interface interface HDMI Max 4KP30 USB3.0 Max 4KP30, UVC1.1, PTZ 3G-SDI Max 1080P60(BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard) LAN Network protocol: IPv4, TCP, UDP, HTTP, NTP, DNS, DHCP, ARP, RTSP, RTP, RTCP, ONVIF, RTMP，RTMPS，VISCA OVER IP, PoE, NDI|HX Communication interface 1 *, RS-232 IN, Longest distance: 30 m, VISCA/Pelco-D/Pelco-P protocol 1 *, RS-422 , Longest distance: 1200 m, VISCA/Pelco-D/Pelco-P protocol Power interface JEITA Type（DC IN 12V）HEC3800 PoE: 802.3af General Specifications Input voltage AC110V-AC220V to DC12V(DC11.5-DC12.5V) Input current DC12V/3A Working temperature 0℃~+45℃ Storage temperature -10℃~+60℃ Power consumption 15W(MAX) Package size (Length)173 × (Width)150 x (Height)186mm Weight(net weight） 2KG(NET:1KG) Notice：Specifications and information of the camera are for reference only, and the contents are subject to change without prior notice.
