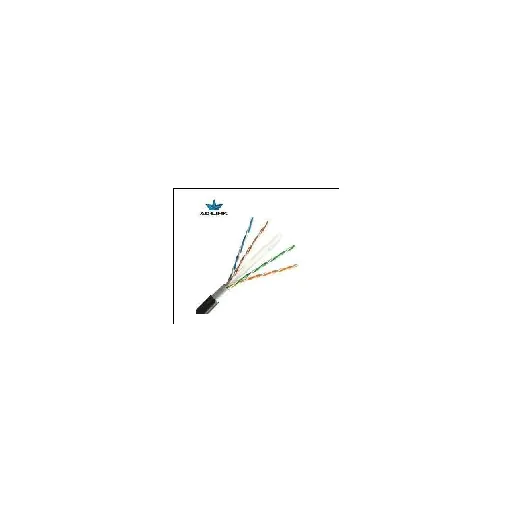

AD-Link AD-OU601-C (1 PER ROLL) — • OutdoorCat6e UTP 305m 0.5mm cca

SKU KY-810F028989D7 · Unit: piece

• OutdoorCat6e UTP 305m 0.5mm cca

Ask sales to confirm stock, configuration and compatibility.

Product description

• OutdoorCat6e UTP 305m 0.5mm cca • InnerConductor thickness: 0.5mm • Stretching Resistance: (max)400N • Conductor size: 23AWG • Impedance: 100±15%Ω at 1~250MHz • Conductor material: CCA • DC Resistance Imbalance: 66% • No. of Conductor: 4P • Insulation Resistance: 10000MΩ.km • Insulation Material: PE • Operating Temperature: -40 °C -+70 °C • Jacket: PVC+HDPE • Shield: Unshielded Twisted Pairs • Filler: PE Cross • Insulation Thickness: 0.18mm • Jacket Thickness: 0.2mm
