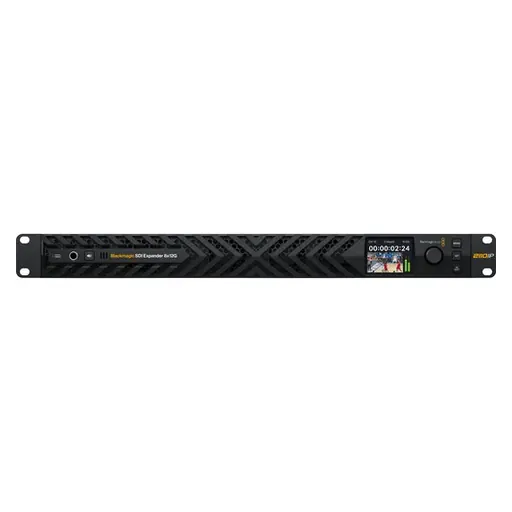

Blackmagic Design SDI Expander 8x12G

SKU KY-7C5AFA620EBF · Unit: piece

Key Features Connect 12G-SDI Gear to 100GbE Systems Convert 16 Channels of 4K60 10-Bit Video 8 x 12G-SDI Inputs to 100GbE Output 100GbE Input to 8 x 12G-SDI Outputs SMPTE 2110 IP Video Compliance 2.2"

Ask sales to confirm stock, configuration and compatibility.

Product description

The Blackmagic Design SDI Expander 8x12G is a 1 RU bidirectional SMPTE 2110 IP converter designed to integrate 12G-SDI infrastructure into high-bandwidth 100GbE broadcast systems. Supporting up to 16 channels of simultaneous 10-bit 4:2:2 video conversion, the unit converts eight independent 12G-SDI inputs to SMPTE 2110 IP while concurrently converting eight SMPTE 2110 IP streams back to 12G-SDI outputs. Dual 100GbE QSFP28 connections provide SMPTE ST 2022-7 redundancy, ensuring uninterrupted signal delivery across IP-based production workflows. Engineered for hybrid SDI/IP environments, the expander supports SD, HD, and Ultra HD formats up to 4K60 with automatic detection, along with 16 channels of embedded audio per 2110 IP video stream. A front-panel 2.2" LCD with integrated control knob and buttons enables real-time monitoring of video, audio, and system parameters, while a built-in speaker and headphone output allow for direct audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance. SDI and IP Video Conversion Simultaneous bidirectional conversion between 12G-SDI and SMPTE 2110 IP video Eight 12G-SDI inputs and eight 12G-SDI outputs in a single 1 RU chassis Dual 100GbE QSFP28 ports with SMPTE ST 2022-7 redundant streaming Auto-detection of SD, HD, and Ultra HD formats up to 4K60 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support 16 channels of embedded audio per IP video stream Convenient Design 2.2" front-panel LCD for video, audio, and system monitoring Integrated control knob and buttons for configuration and routing Built-in speaker and headphone output for audio monitoring Dedicated RJ45 port for NMOS control, configuration, and updates USB-C interface for firmware updates and local configuration Dual IEC C14 AC inputs for redundant power delivery
