AD-Link / Peripherals & accessories

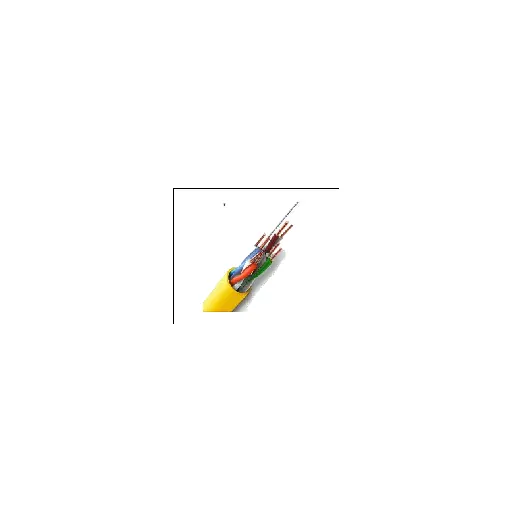

AD-Link AD-IN601-C (1 PER ROLL) — • UTP CAT6E 305m 0.5mm cca(Yellow)

SKU KY-77104B9861EF · Unit: piece

• UTP CAT6E 305m 0.5mm cca(Yellow)

Ask sales to confirm stock, configuration and compatibility.

Product description

• UTP CAT6E 305m 0.5mm cca(Yellow) • InnerConductor thickness: 0.5mm CCA • Conductor size: 23AWG • Stretching Resistance: 250N (max) • Conductor material: CCA • Impedance: 100±15%Ω at 1~100MHz • No. of Conductor: 4P • DC Resistance Imbalance: 2.5% • Insulation Material: HDPE • Working Capacitance(Max.): 5.4nF/100m • Jacket: PVC • Insulation Resistance: 10000MΩ.km • Shield: Unshielded Twisted Pairs • Operating Temperature: -40 °C -+70 °C • Filler: PE Cross • Insulation Jacket: 0.2mm Jacket • Jacket Thickness: 0.92-0.95mm
