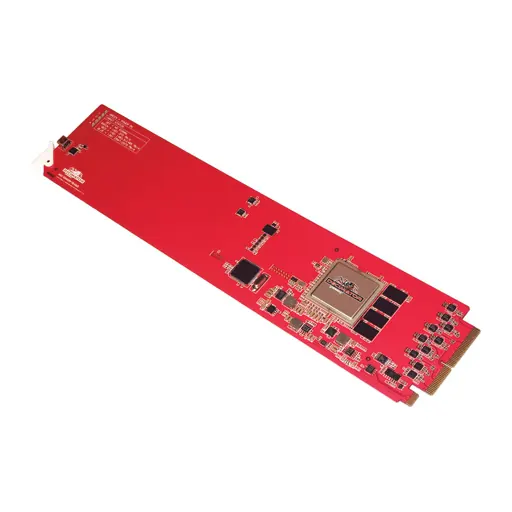

Decimator Design MC-DMON-QUAD 1 to 4 Channel (3G/HD/SD)-SDI MultiViewer with Custom Layouts

SKU KY-76B8119C7CF6 · Unit: piece

By Order Basis Only The Decimator MC-DMON-QUAD is a low cost openGear, 1 to 4 Channel, (3G/HD/SD)-SDI MultiViewer with Custom Layouts, UMDs, Audio Meters and Tallies. It supports 3G level A and B on i

Ask sales to confirm stock, configuration and compatibility.

Product description

Features Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B Low cost miniature (3G/HD/SD)-SDI 1 to 4 MultiViewer or 4 to 1 input multiplexer Custom Layouts with various standard layouts 16 Character UMD overlay per window with individual enables, custom positioning and size 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size Audio ID overlay 3 pin connector on the DR1-10B1G rear module allows for Dynamic UMD and Tallies via RS422/485 using the industry standard TSL protocol Tallies can be applied to either Tally Boxes (Default) or Border Tally boxes allows for up to 4 Tallies per window Fast switching between inputs using Full-Screen scaling Selectable output format in both Full-Screen MultiViewer mode Low latency buffering for each input allowing non-synchronous inputs 4 x (3G/HD/SD)-SDI inputs with auto detection (29 Formats supported in total) Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously Variable aspect ratios per quadrant In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI outputs USB Mini B port for control and firmware updates Supports openGear DashBoard for control The DR1-10B1G rear is sold seperately and adds 10 BNC connectors and a 3 pin connector for RS422/485 Control. Specifications SDI INPUT & OUTPUT FORMATS 3G: SMPTE [email protected] and 2.967Gb/s 1080p@60/59.94/50Hz HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s 1080i@60/59.94/50Hz 1080p/psf@30/29.97/25/24/23.98Hz 720p@60/59.94/50/30/29.97/25/24/23.98Hz SD: SMPTE 259M@270Mb/s 625i50 (PAL) 525i59.94 (NTSC) INPUTS 4 x (3G/HD/SD)-SDI USB Mini B for control and updates 3-pin connector for UMD and Tallies via RS422/485 LED STATUS OUTPUTS 1 x SDI (3G/HD/SD)-SDI LED STATUS Power / Update 4 x Signal lock and rate
