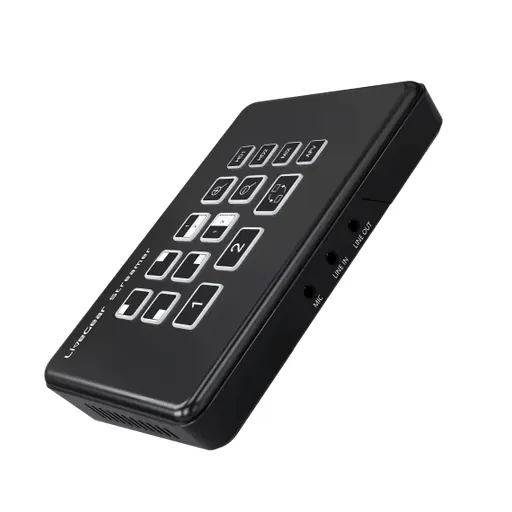

LiveGear Streamer 2 Way HDMI Video Switcher 1080P 60Hz

SKU KY-734C67877532 · Unit: piece

Features: * 2 HDMI inputs, 2 HDMI outputs; * One HDMI output supports PVW multi-view preview, another HDMI output supports PGM output; * 1 way Type-C port UVC capture output; * Supports OSD display of

Ask sales to confirm stock, configuration and compatibility.

Product description

This 2 Way HDMI Video Switcher for Live Streaming, it supports 2 HDMI inputs 2 HDMI outputs. Input and output resolution support 1920X1080@60Hz, and support HDCP1.4 standard. Support HD embedded audio or external analog audio, , after mixed processing, can be embedded in the output HD signal or output from the analog port. Suitable for program production, interview and speech on-site production, outdoor experience events, school courseware production and other video switching needs. It can be used in live streaming and various event venue. Features: * 2 HDMI inputs, 2 HDMI outputs; * One HDMI output supports PVW multi-view preview, another HDMI output supports PGM output; * 1 way Type-C port UVC capture output; * Supports OSD display of input channel signals, resolution information, and volume information; * In the mix mode, HDMI embedded audio select fixed HDMI audio and mix Mic/LINE IN audio; * Support HD audio following (fixed following PGM); * One Type-C 3.0 capture and streaming interface supports YUY2 video format and support UVC 1.0; * Support 4 picture in picture modes(PIP), PIP image enlarged or reduced; * Support left and right two image, upper and lower image; * Extensive compatibility: fully supports mainstream live streaming and media software, including OBS Studio, PotPlayer, and VLC etc.; * Support power-off save settings; * High quality keys, color backlight design. Specifications: HDMI input resolution : 1080P@60Hz HDMI output resolution : 1080P@60Hz Type-C 3.0 capture and streaming video format : YUY2、MJPEG Supports audio format : PCM The maximum bandwidth transmission : 148.5MHz Maximum transmission rate : 1.65 x3Gbps The input cable length : 1080P/60Hz≤15 m AWG26 HDMI standard cable The output cable length : 1080P/60Hz≤15 m AWG26 HDMI standard cable Maximum working current : 0.8 A Power adapter specifications : Input AC(50Hz,60Hz)100V-240V; Output: DC/5V 1A Working temperature range : (0℃ to +45℃) Size : Approx. 136x98x29(mm) The weight : Approx. 185g
