Ucast Minemedia / Wireless Video Transmission System

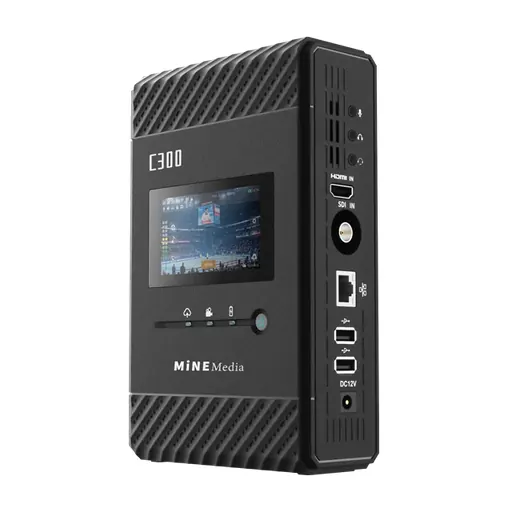

Ucast Minemedia UCAST Mine Media C300 5G Bonding Encoder Multi Network Aggregation Encoder

SKU KY-726682E28617 · Unit: piece

✔ 5G Multi network aggregation encoder, simultaneously bond up to 8 network links including support for 2*5G LTE, 2* 4G LTE cellular, WiFi, Ethernet, and USB Dongle. (C350 with 4*5G, WiFi, Ethernet, a

Ask sales to confirm stock, configuration and compatibility.

Product description

Mine C300 Basic Parameters Model Mine C300 / Mine C350 Name 5G/4G Bonding Encoder Video Input 1* HDMI, 1* SDI , 1* UVC Camera, 1* Pull Stream. Resolution 480i: 720×[email protected] 576i: 720×576@50i 1280×720@25p/30p/50p/60p/120p 1080i: 1920×1080@50i/60i 1080p: 1920×1080@25p/30p/50p/60p Encoding Levels H.265 Main profile, H.264/AVC High / Main / Baseline Profile Stream Resolution 480×270, 640×360, 848×480, 960×540, 1280×720 1920×1080 Encoding Video FPS 15-60FPS Encoding Video Bitrate adjustable Bitrate control VBR / CBR Recording resolution Max 1080p TS Protocols RTMP(S) / SRT / RTSP Audio Input HDMI & SDI embed Audio and 1* 3.5mm dual-channel external audio Output 1*3.5mm dual-channel audio monitoring Sample Rates 44.1kHz, 48.0 kHz Encoding AAC Network 4 SIM Slots Built-in 5G module * 2 & 4G module * 2 C350 Built-in 5G module * 4 WiFi 2.4G/5.8G dual-band WIFI access RJ45 Gigabit network port USB External 4G dongle, USB network card can be used Storage TF card (Max 2TB) Power Power supply DC12 3A Battery Capacity 7.4V/12000mAh Maximum consumption 38W System Control Panel iOS / Android APP Firmware Update supports Remote management supports Working Environment Operating temperature -20 to 80 deg C Storage temperature -40 to 90 deg C Relative Humidity 5% to 90% non-condensing Dimension & Accessories Dimension 123mm*190mm*50mm Weight 780g MINE C300 SOLUTION WHAT’S IN THE BOX Package includes: Mine C300 5G Bonding Encoder (Dual HDMI/SDI)*1 Large Backpack (Optional)*1 Small Backpack *1 Shoulder Straps *1 Power adapter*1 Manual*1 Mine C300 Size
