Blackmagic Design / Video Converters

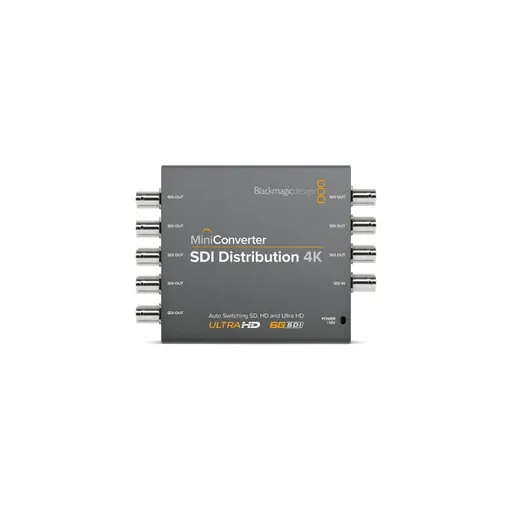

Blackmagic Design CONVMSDIDA4K Mini Converter - SDI Distribution 4K

SKU KY-6580CEFE984E · Unit: piece

When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re‑clocked SDI outputs with automatic switching betw

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design CONVMSDIDA4K Mini Converter - SDI Distribution 4K Description When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re‑clocked SDI outputs with automatic switching between all SD‑SDI, HD‑SDI, 3G‑SDI and 6G‑SDI video formats, plus all ASI, ancillary and embedded audio formats. Connections SDI Video Inputs Switchable between SD, HD and 6G‑SDI. Reclocking Yes SDI Video Outputs 8 outputs automatically match the SDI video input. Multi Rate Support Auto detection of SD, HD or 6G‑SDI. Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, SMPTE ST‑2081 SDI Video Rates SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV and RGB SDI Auto Switching Automatically detects SD, HD or 6G‑SDI. ASI Support Yes Power Requirements Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point. Power Consumption 4.80 Watts Operational Voltage Range 12 ‑ 31V DC
