Blackmagic Design / Broadcast Converters

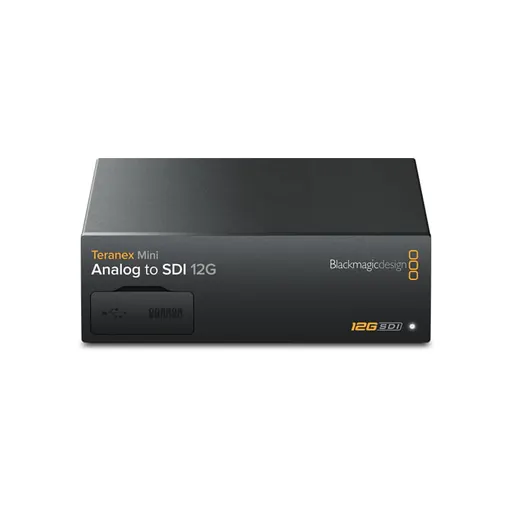

Blackmagic Design CONVNTRM/BB/ANSDI Teranex Mini - Analog to SDI 12G

SKU KY-5CB7ABE69790 · Unit: piece

Order Basis Only. Kindly send Inquiry for Availability.

Ask sales to confirm stock, configuration and compatibility.

Product description

Black Magic Design CONVNTRM/BB/ANSDI Teranex Mini - Analog to SDI 12G Convert from analog video to 12G-SDI. Convert incoming analog video signals to SD, HD, 6G and 12G-SDI. Ideal for converting your analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD/Ultra HD SDI video up to 2160p60. SPECIFICATIONS: Connections SDI Video Outputs 2 x 12G-SDI outputs. Analog Video Inputs Composite, Y/C or Component. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. Analog Audio Inputs 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input. Digital Audio Inputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input. Multi Rate Support SDI output switchable between HD for composite and S-Video and Ultra HD for component HD. Updates and Configuration USB or Ethernet. Reclocking Yes Standards SDI Video Standards 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 2160p25, 2160p29.97, 2160p50, 2160p59.94 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10 SDI Video Rates SDI video connections are switchable between standard definition and high definition. SDI Video Sampling 4:2:2 and 4:4:4. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K. SDI Color Space REC 601, REC 709 Analog Video Standards 525i59.94 NTSC, 625i50 PAL Analog Color Space REC 601, REC 709 Analog Color Precision 4:2:2
