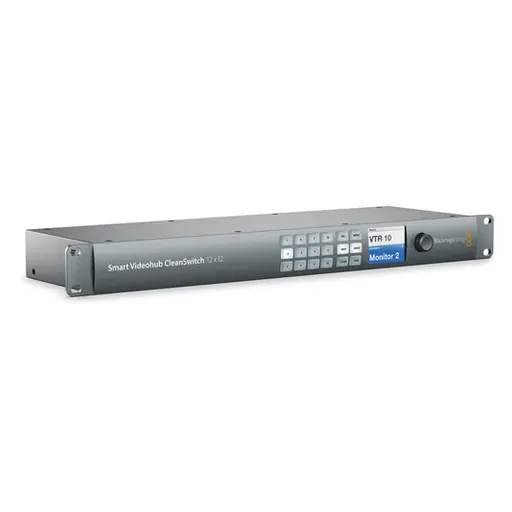

Blackmagic Design VHUBSMTCS6G1212 Smart Videohub CleanSwitch 12x12

SKU KY-564DD1C8A8BB · Unit: piece

Key Features Routing Switcher with Frame Syncing 12 x 6G-SDI Inputs / 12 x 6G-SDI Outputs Supports SD, HD, UHD 4K, DCI 4K 4:2:2 and 4:4:4 Sampling 10-Bit Processing SDI Reclocking Built-In LCD with Sp

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design VHUBSMTCS6G1212 Smart Videohub CleanSwitch 12x12 Compact 6G-SDI router with built in re-synchronizers on all inputs allows clean switching between all video sources of the same video standard, and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats. Supports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when the switching is between the same video standard. Includes front panel button and spin knob routing, elegant machined metal front panel with LCD for routing display and video monitoring and remote Ethernet control. Connections SDI Video Inputs 12 x 10-bit SD-SDI, HD-SDI and 6G-SDI. SDI Video Outputs 12 x 10-bit SD-SDI, HD-SDI and 6G-SDI. SDI Rates 270Mb, 1.5G, 3G, 6G. Video Input Re-Sync On all 12 inputs for clean switch. SDI Reclocking On all SDI outputs. Reference Input Tri-Sync or Black Burst. Control Panel Connection Ethernet. Serial Control Connection RJ-6 RS-422. Multi Rate Support Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video. Updates USB Front Panel Router Control 12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet. Router Configuration Via front panel LCD or RJ45 Ethernet. RS-422 Router Control 1 x input for controlling router crosspoint switching. SD Video Standards 525i59.94 NTSC, 625i50 PAL. HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B , ITU-R BT.656 and ITU-R BT.601. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48kHz and 24 bit. SDI Color Precision 10-bit 4:2:2 and 4:4:4 SDI Color Space YUV or RGB. SDI Auto Switching Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M. Built in Control Panel 12 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display. External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. The Smart Videohub CleanSwitch 12 x 12 6G-SDI from Blackmagic Design is a mixed format router with 12 6G-SDI inputs and 12 6G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video. The CleanSwitch model allows for re-timing of SDI feeds, so all switches are timed to happen between frames. It supports 4:2:2 and 4:4:4 color sampling and 10-bit processing for smoother gradations. Housed in a 1RU frame, the Smart Videohub is ideal for use in both large broadcast systems or portable mini racks for live productions. A built-in LCD lets view your sources directly on the router itself, with simple push buttons and spin knob provided for control. Routing can also be controlled using dedicated remote panels or over Ethernet using the included software for Mac OS X and Windows. You can even use the available iPad app to change routing over your wireless network. Note: IEC power cable is not included. 12x 6G-SDI inputs / 12x 6G-SDI outputs Auto-detects between SD, HD, Ultra HD 4K, and DCI 4K and instantly switches standards Built-in SDI reclocking on every SDI input Supports 8-bit, 10-bit, and 12-bit 4:2:2 and 4:4:4 signals 4:2:2 or 4:4:4 color sampling with 10-bit processing UHD 4K (3840 x 2160) up to 30p Supports DCI 4K (4096 x 2160) at 24p HD Video Resolutions up to 1080p60 Supports 16 channels of embedded audio on each SDI signal Genlock Reference input compatible with black burst and tri-sync Built-in video monitoring and spin knob control Push buttons on front panel On-screen labels support Unicode so they work in non-Roman character sets such as Chinese, Japanese, Korean, Russian, German, French, Spanish, and more Videohub control software included for control over Ethernet Ethernet control allows direct connection to the computer network and is compatible with Videohub Smart Control and Videohub Master Control panels Apple iPad control panel app available Create your own custom router control with free software developer kit Machined aluminum 1 RU chassis IEC power cable required
