Blackmagic Design / Video Converters

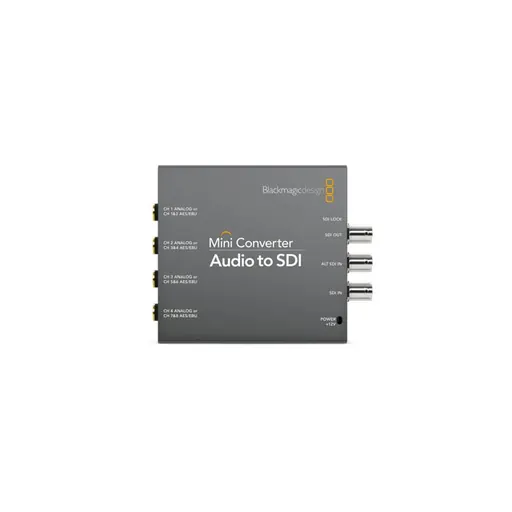

Blackmagic Design CONVMCAUDS2 Mini Converter - Audio to SDI 2

SKU KY-5417D01F2477 · Unit: piece

Embed audio into any SDI source in SD and HD formats up to 1080p60! Audio is input as balanced analog or AES/EBU using ¼ inch connectors from equipment such as mixers and analog decks. Mini Converter

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design CONVMCAUDS2 Mini Converter - Audio to SDI 2 Embed audio into any SDI source in SD and HD formats up to 1080p60! Audio is input as balanced analog or AES/EBU using ¼ inch connectors from equipment such as mixers and analog decks. Mini Converter Audio to SDI is the ideal SD/HD SDI audio embedder for when you don’t need the cost of the Ultra HD model! Connections SDI Video Inputs 1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x Embedded SDI Output. Analog Audio Inputs 4 channels of balanced analog audio. Digital Audio Inputs 8 channels of balanced AES/EBU audio. SDI Redundant Input Automatically switches over if main SDI input is lost. Multi Rate Support Auto detection of SD, HD or 3G‑SDI. Updates and Configuration Via USB 2.0 high speed. (480 Mb/s) Reclocking Yes Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, ITU‑R BT.656, ITU‑R BT.601, SMPTE ST‑2036 SDI Video Rates SDI video connections are switchable between standard definition and high definition. SDI Video Sampling 4:2:2, 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2, 4:4:4 SDI Color Space YUV, RGB SDI Auto Switching Automatically selects between SD, HD, and 3G‑SDI. Software Software Control Mac™ and Windows™ software upgrade via USB. Internal Software Upgrade Via included updater application.
