Mipro / Microphone

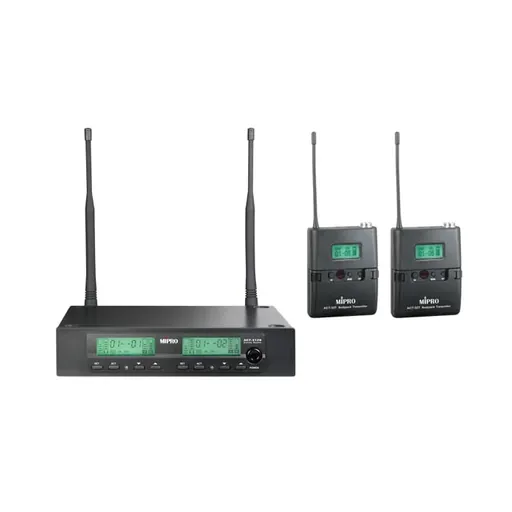

Mipro ACT-312/ACT-32T*2 1/2-Rack Dual-Channel Diversity Receiver w/ 2 Body Pack Transmitters

SKU KY-5174EA29194D · Unit: piece

EIA standard metal chassis equipped with a green backlit LCD screen and electronic buttons on the front panel. The LCD screen will automatically turn bright to identify “Working” or “Standby” mode. Th

Ask sales to confirm stock, configuration and compatibility.

Product description

Channel Dual Chassis EIA standard half-rack (9.5") metal chassis Frequency Range UHF 480 ~ 934 MHz (country dependent) Bandwidth 24MHz Receiving Mode Diversity receiving Sensitivity 10 dBμV @ S/N > 80 dB Frequency Response 50 Hz – 18 kHz Dynamic Range > 106 dBA Audio Output Balanced: +16dB / 0dB/ -6dB Unbalanced: +10dB / 0dB/ -6dB Antenna Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems. Power Supply DC 12 – 15 V. External AC 100 – 240 V switching power supply Dimensions 210 × 44 × 165 mm (W×H×D) Weight Approx. 0.9 kg Note Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
