Blackmagic Design / Photo, video & audio equipment

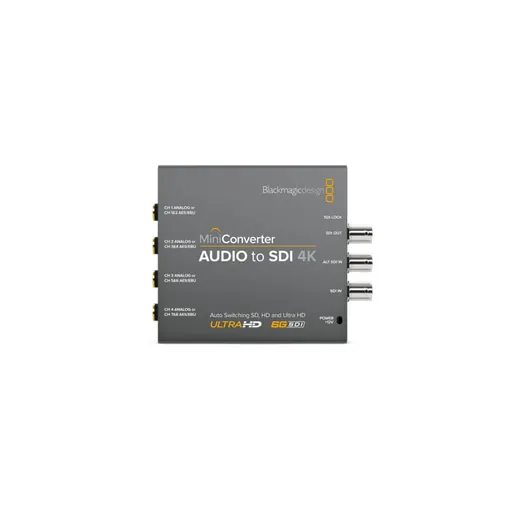

Blackmagic Design CONVMCAUDS4K Mini Converter - Audio to SDI 4K

SKU KY-50E4EEFAED29 · Unit: piece

Mini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. Now you can embed professional aud

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design CONVMCAUDS4K Mini Converter - Audio to SDI 4K Mini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. Now you can embed professional audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters! Connections SDI Video Inputs 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x Embedded SDI Output. Analog Audio Inputs 4 channels of professional balanced analog audio with standard 1/4 inch jack connections. Digital Audio Inputs 8 channels of professional balanced digital with standard 1/4 inch jack connections. SDI Redundant Input Automatically switches over if main SDI input is lost. Multi Rate Support Auto detection SD, HD or 6G‑SDI. Updates and Configuration Via USB 2.0 high speed. (480 Mb/s) Reclocking Yes Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, SMPTE ST-2036, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601. SDI Video Rates SDI video connections are switchable between standard definition and high definition. SDI Video Sampling 4:2:2, 4:4:4 SDI Audio Sampling Television standard sample rate of 48kHz and 24‑bit. SDI Color Precision 4:2:2, 4:4:4 SDI Color Space YUV, RGB SDI Auto Switching Automatically selects between SD, HD, 3G and 6G‑SDI. Software Software Control Mac™ and Windows™ software upgrade via USB. Internal Software Upgrade Via included updater application.
