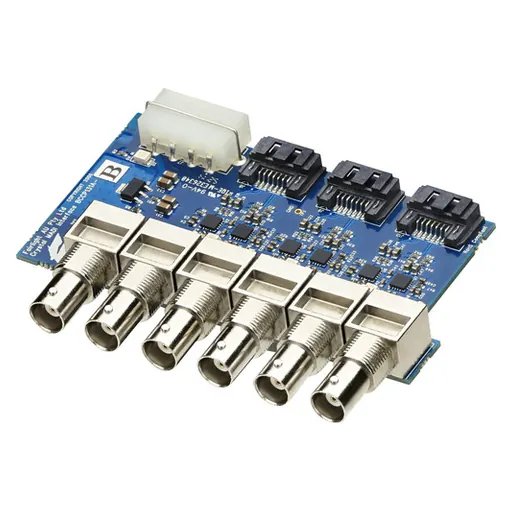

Blackmagic Design Fairlight PCIe Audio MADI Upgrade

SKU KY-506509473A10 · Unit: piece

Key Features For DaVinci Resolve 17 Systems Requires Fairlight Audio Accelerator 192 Channels of MADI I/O 24-Bit / 48 kHz Resolution Three 75-Ohm BNC MADI Inputs Three 75-Ohm BNC MADI Outputs Uses No

Ask sales to confirm stock, configuration and compatibility.

Product description

Connected to your Fairlight Audio Accelerator, the Blackmagic Design Fairlight PCIe Audio MADI Upgrade adds 192 channels of MADI I/O to your DaVinci Resolve 17 system, raising the total MADI channel count to 256 inputs and outputs. This half-length card uses no additional PCIe bandwidth and hooks up to the Fairlight Audio Accelerator (required and available separately) through the supplied SATA cables. The Fairlight Audio MADI Upgrade operates at 24-bit / 48 kHz resolution. It features three 75-ohm BNC MADI inputs and three 75-ohm BNC MADI outputs to provide extreme channel counts while using minimal physical space. MADI Inputs Three MADI inputs via 75-ohm BNC jacks MADI Outputs Three MADI outputs via 75-ohm BNC jacks Audio Channels Total of 192 inputs and outputs Bit Depth and Sample Rate 24 bit / 48 kHz PCI Form Factor Single half-length PCIe x4 board Power 4-pin computer power cable connector Hardware Requirements Requires Fairlight Audio Accelerator (available separately) PCIe Requirements Requires connection to Fairlight Audio Accelerator using three supplied SATA cables; uses no additional PCIe bandwidth
