Lilliput / Rack

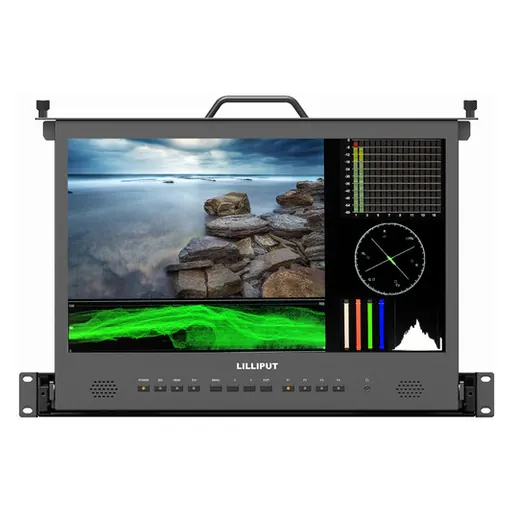

Lilliput RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor (1 RU)

SKU KY-497701F915E6 · Unit: piece

Features The LILLIPUT RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor features a 16:9 IPS panel and offers a maximum resolution of 1920 x 1080p60. It offers a brightness rating of 300 cd/

Ask sales to confirm stock, configuration and compatibility.

Product description

Lilliput RM-1730/S LCD Size 17.3" (43.9 cm) Display Resolution 1920 x 1080 (RGB) Active Area H x V: 15 x 8.45" (381.89 x 214.81 mm) Dot Pitch H x V: 0.1989 x 0.1989 mm Aspect Ratio 16:9 Brightness 300 cd/m2 Contrast 700:1 Light Source LED Surface Treatment Hard coating (3H) High-resolution adaptable AG Response Time Rising: 14 ms (typical), 19 ms (maximum) Falling: 11 ms (typical), 16 ms (maximum) Formats Supported SDI SMPTE-425M-AB: 1080p 60/59.94/50, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98 SMPTE-372M: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 29.97/25/24/23.98, 720p 60/59.94/50 SMPTE-296M: 720p 60/59.94/50/30/29/25/24/23.98 SMPTE-292M: 1080p 30/29.97/25/24/24PsF/23.98/23.98PsF SMPTE-125M: 1080p 30/29.97/25/24/24PsF/23.98/23.98PsF, 1080i 60/59.94/50, 480i 59.94 ITU-R BT.656: 576i 50 HDMI 1080p Full HD 1080i 720p 576p 576i 480p 486i Viewing Angle 178°/178° (H/V) Input and Output Connectors Inputs 1 x 3G-SDI 1 x HDMI 2 x Audio (L/R) 1 x TALLY 1 x DVI Output 1 x 3G-SDI 1 x HDMI 1 x Earphone jack Audio 2 x Speakers 1 x Earphone Power Requirements Current: 2.5 A Input Voltage: 15 VDC Controls Basic Power, SDI, HDMI, DVI Menu, < > button, exit, user-definable buttons Advanced Brightness, contrast, saturation, tint, sharpness, color temp Markers (center/aspect/safety), marker color, marker mat Thickness, scan, aspect, underscan, H/V delay, check field Zoom, freeze, DSLR, waveform, peaking (color/level), false color Exposure, exposure level, histogram Volume, level meter, audio ch, language HDMI-SDI convert, color bar, OSD time, back light, fan, reset Power Consumption ≤32 W Speaker 1 W, built-in Menu Language English/Chinese Temperature & Humidity Operation: 32 to 122°F (0 to 50°C) Storage: -4 to 140°F (-20 to 60°C) Humidity: 80% RH 240 hours of operation at high temperature/humidity Dimensions 19 x 1.7 x 19.9" (48.25 x 4.4 x 50.75 cm) Weight 18.95 lb (8.6 kg) Packaging Info Package Weight 25.15 Box Dimensions (HxWxD) 5.2 x 23.0 x 26.1
