Manfrotto / Photo, video & audio equipment

Manfrotto MVK504AQ 504 Fluid Video Head & Alu Single Leg Tripod

SKU KY-48525F27AD7B · Unit: piece

Review quotation list →

Ask sales to confirm stock, configuration and compatibility.

Product description

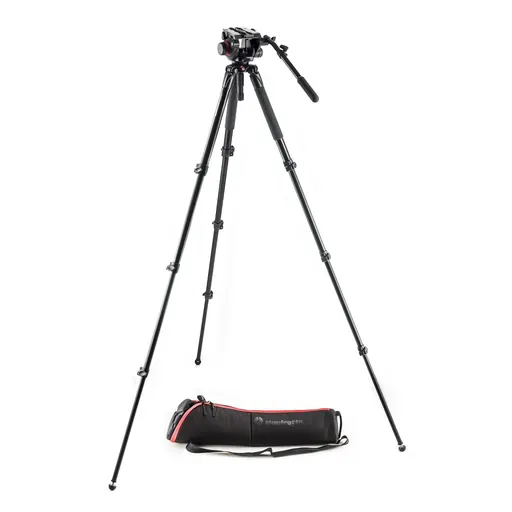

Manfrotto MVK504AQ 504 Fluid Video Head & Alu Single Leg Tripod A professional video system for any occasion. The Manfrotto 504 Aluminium Single Leg Video system is the ideal solution for on-the-go videographers looking for the full package. Not only is this system reliable and high quality, it’s expertly designed too. The pack includes the 504 fluid video head, MVT535AQ aluminium single leg tripod, and padded carry bag. The Manfrotto 504 fluid video head with incorporated 75mm half ball features variable fluid drag system in both pan and tilt movement which allows smooth shooting, a 4-step counterbalance system up to 7,5 Kg and a maximum payload of 12 Kg at 55mm C.O.G.. Easy link 3/8'' thread connections allows an external monitor or other accessory equipment to be fitted. The tripod is made from aluminium. Individual leg adapters give you the freedom to adjust each leg to get into precise position, for even better framing control. SPECIFICATIONS: Weight 232.78 oz Collection/Series 504 Material Aluminum Safety Payload Weight 26.46 lbs Min Height 14.37 in Maximum Height 70.47 in Head Type Video/Fluid Head Leg Sections 4 Legs Tube Diameter 0.79- 0.98- 1.16- 1.39 in Quick Release Yes Counterbalance System Variable Steps Counterbalance Weight 0- 5.51- 11.02- 16.53 lbs Center of gravity 2.17 in Closed Length 28.74 in Ball Flat Ball Accessory Compatibility MVAPANBARM; MVAPANBARL;114, 127V, 127VS, 502HLV, 509HLV Top Attachment 1/4″ screw, 3/8″ screw Base Diameter 2.95 in Powered by (batteries) Lithium Bubble Spirit Level (No.) 1 Carrying Bag Included MB MBAG80PM Center Column no center column Certifications WEEE; RoHS Color Black Easy Link Yes Front Tilt -60° / +90° Leg Type Single Leg Angles 23°, 50°, 70° Leg Lock Type Flip Lock Maximum Working Temperature 60 Minimum Working Temperature -20 Pan Bar Included Yes Pan Drag continuously adjustable from 0 to max level Panoramic Rotation 360 Plate Type 504PLONG Tilt Drag continuously adjustable from 0 to max level
