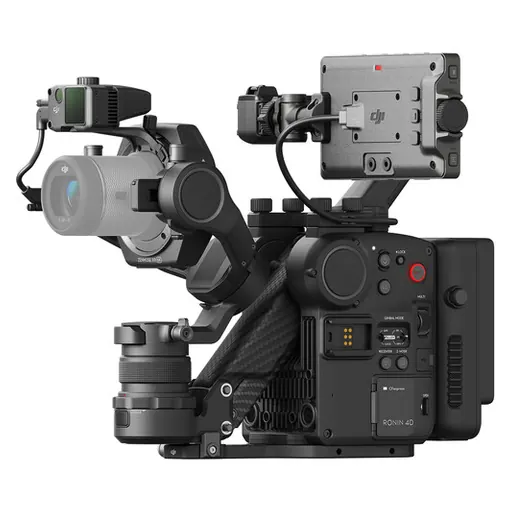

DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit

SKU KY-469FC92838AC · Unit: piece

DJI Ronin 4D 6K Highlights Zenmuse X9-6K Camera Gimbal Combo Z-Axis Camera/3-Axis Gimbal Stabilizing ProRes HQ & Raw Video up to 6K60 Right Focus/Control, Left Pan/Tilt Grips 5.5" 1000 cd/m² Touchscre

Ask sales to confirm stock, configuration and compatibility.

Product description

Features Designed for both solo use by independent creators and dynamic pro video capture, the Ronin 4D from DJI is an innovative all-in-one camera/gimbal solution. The "4D" designation refers to the Z-axis (vertical) stabilization built into the X9-6K camera and the three-axis gimbal stabilization. Constructed from lightweight carbon fiber and an aluminum/magnesium alloy, this system is ideal for independent content creators, indie filmmakers, and event videographers. The full-frame capture at rates up to 6K60 in both ProRes HQ and ProRes Raw and Ronin's CineCore 3.0 image processing system with ACES workflow support also suits the 4D as a "B" or 2nd unit camera for larger cine-style productions. This combo includes the main Zenmuse X9-6K full-frame video camera and a 3-axis gimbal, plus an array of modular monitor, focusing, and control components. Kit items include a DL lens mount, a LiDAR range finder, one TB50 battery, a charging hub, and left and right control handgrips. Note! A wireless video transmitter is not included in this combo kit. All-in-One Camera Gimbal System This innovative camera gimbal combines imaging, stabilization, and focusing in one lightweight, carbon fiber and aluminum/magnesium alloy rig Combination design reduces your setup time at the start of the day and in between setups and locations Included modular components: Left and right control handgrips LiDAR range finder Top handle Baseplate Separately available components: 7" high-bright, touchscreen monitor Wireless video transmitter ProSSD 1TB media drive X9 focus motor Leica M lens mount 3-channel FIZ lens control unit CineCore 3.0 Imaging Processing System The Zenmuse X9, DJI's full-frame camera, uses a proprietary chip for advanced processing and high-performance computing The Ronin 4D uses the CineCore 3.0 system to support internal recording of Apple ProRes Raw, ProRes 422 HQ, and H.264 video Industry-standard ACES workflow support provide easy compatibility with other cinema cameras Advanced 4-Axis Stabilization Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves Z-axis stabilization built into the camera, 3-axis stabilization in the gimbal Tilt stabilization uses dual, symmetrical motors Pan and X (roll) axes with additional stiffness buffering Downward ToF (time of flight) sensor Forward and downward-facing dual-vision sensors Built-in IMU (inertial measurement unit) and barometer New and improved stabilization algorithm Zenmuse X9-6K Camera with DL Lens Mount The D4's DL lens mount supports DJI's current selection of lightweight, carbon fiber 16, 24, 35, and 50mm lenses Full-frame capture with all but the 16mm DL lens Interchangeable lens mounts available for use with Sony E-mount or Leica M-mount lenses Supports ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses Please see the current lens compatibility list here ProRes Raw, 422 HQ, and H.264 Capture Captures 6K raw at rates up to 60 fps in full-frame 2.39:1 Captures up to 4K raw at rates up to 120 fps in Super 35 2.39:1 Captures up to 4K raw at rates up to 96 fps in Super 35 17:9 Capture up to 6K60 ProRes 422 HQ video in full-frame 2.39:1 Capture up to 4K120 ProRes 422 HQ video in Super 35 2.39:1 Capture up to 2K120 ProRes 422 HQ or H.264 in 17:9 full-frame Dual Native ISO 800/5000 dual native ISOEI 200 to 12800 14+ stops of dynamic range produce nuanced imaging under a range of lighting condition In-Camera ND Filter Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting condition Especially handy for outdoor shoots with changing cloud cove Motorized filter syste Carry in "built" mode for easy company move LiDAR Focus Contro LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' rang Excellent focusing performance even in low-light environment Focus pulling can be viewed graphically, thanks to a built-in depth meter Intuitive and highly accurate focusing syste Modular LiDAR focusing module attached to the front of the D4 ri Autofocus Feature Maintains focus, even when motion blur is produced by fast-moving subject Separately available focus motor for use with manual lense Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operator Automated Manual Focu The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocu Operators can grab the focus wheel of the right handgrip at any time to manually focus Handgrip focus wheel uses dynamic damping to provide a physical feel for focus change ActiveTrack Pr DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gat ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging syste Dual Focus, Iris, and Control Grip Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc. Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mod Single User or Crew-Assisted Operatio Top-notch stabilization in a lightweight for Ideal for both solo operators as well as assistant-accompanied shoot Designed to counter footsteps from inexperienced gimbal shooter Works equally well with a single grip, dual grips, shoulder supported, or tripod-mounte Sport mode is available with the touch of a button, accommodating faster-paced actio Use in standard, underslung, jib, and crane setup Media Storage Option Requires a ProSSD 1TB drive (not included) to capture raw footag USB Type-C port for external recording, no reader needed to offload footag Integrated CFexpress Type-B card slo Built-In 5.5" Touchscreen Monito 5.5" 1920 x 1080 monito 1000 cd/m² displa Touchscreen contro Rotates for optimal viewin Audio Recordin Integrated stereo microphones capture dual-channel 24-bit audi Built-in 3.5mm audio input port and XLR port via expander plat Power Option Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire Each battery provides up to 2.5
