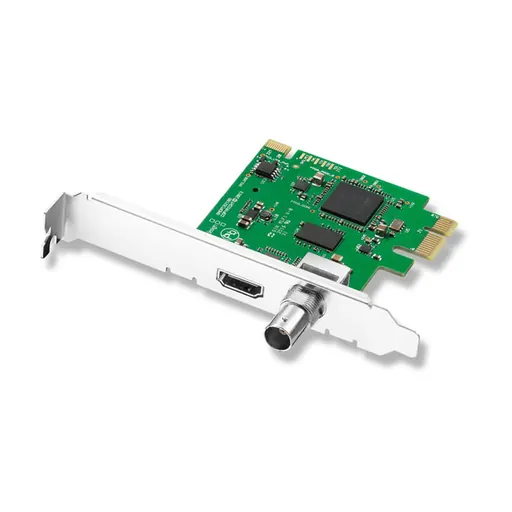

Blackmagic Design BDLKMINIMON DeckLink Mini Monitor HD

SKU KY-465E60CF65B8 · Unit: piece

Order Basis Only. Kindly send Inquiry for Availability.

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design BDLKMINIMON DeckLink Mini Monitor Monitor uncompressed 10-bit video from your computer! Includes SDI and HDMI outputs for connecting to any television or video monitor. DeckLink Mini Monitor auto switches between SD and HD so it handles all common video formats. DeckLink Mini Monitor is the perfect solution for monitoring from editing software while you edit! Includes two PCI Express shields for both full height and low profile slots. Connections SDI Video Outputs 1 x 10 bit SD/HD switchable. SDI Audio Outputs 8 channels embedded in SD and HD. HDMI Video Outputs 1 x HDMI 1.4 type A connector. HDMI Audio Outputs 8 Channels embedded in SD and HD. Computer Interface PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots. Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2. Software Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. Other supported applications include: The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & Marker. Video Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M and 292M. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. Color Precision 8-bit & 10-bit. Video Sampling YUV 4:2:2. Color Space REC 601, REC 709. HDMI Configuration HDMI automatically configures to connected display. HDMI Resolution Pixel for pixel HD resolution output to connected device. Multiple Rate support HDMI and SDI video connections are switchable between standard definitlon and high definition. Processing Colorspace Conversion Hardware based real time. HD to SD Down Conversion Software based down conversion during video playback. HD Cross Conversion Software based cross conversion from 720p to 1080HD on playback. Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
