Shure / Microphones

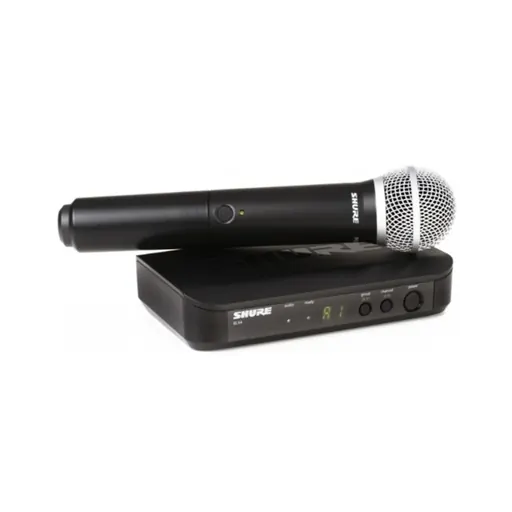

Shure BLX24A/PG58 Handheld Wireless System
SKU KY-4287436B53D5 · Unit: piece
Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a var
Review quotation list →Ask sales to confirm stock, configuration and compatibility.
Product description
Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage. Includes BLX4 single-channel receiver, BLX2/PG58 handheld transmitter, microphone clip, power supply, 2 AA batteries, and user guide. + System Wireless Transmission: Analog UHF Number of RF Channels 123 Included Transmitters: Handheld Diversity: Antenna Diversity RF Frequency Band: K3E: 606 to 630 MHz RF Bandwidth: 24 MHz RF Channel Scanning: Auto-Scan Max Operating Range: 300 ft / 91.4 m (Line of Sight) Max Systems per Setup: 12 Dynamic Range: 100 dBA + Receiver Form Factor: Tabletop Antenna: 2 x Internal Number of Audio Channels: 1 Audio I/O: 1 x XLR: 3-Pin Male Balanced Output 1 x 1/4": TS Female Unbalanced Output Audio Output Level: XLR Output: -27 dBV (Mic Level) 1/4" Output: -13 dBV (Instrument Level) Frequency Response: 50 Hz to 15 kHz (Dependent on Mic) Impedance: XLR Output: 200 Ohms 1/4" Output: 50 Ohms Power Requirements: AC/DC Power Adapter AC/DC Power Adapter 12 to 15 VDC at 160 mA, Center-Positive (Included) AC Input Power: 100 to 240 VAC, 50 / 60 Hz Display & Indicators: 1 x Multi-Segment LED (Channel, Group) 2 x LED (AF Level, Sync) Housing: ABS Operating Temperature: 0 to 135°F / -17 to 57°C Dimensions: 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm Weight: 8.5 oz / 241 g + Transmitter Form Factor: Handheld RF Output Power: 10 mW Audio I/O: none Muting: Off/On Switch Auto-Level Control: No Gain Range: -20 to -10 dB Sync Method: Manual Antenna: 1 x Internal (Handheld) Power Requirements: Battery Battery Type: 2 x AA (Included) Approx. Battery Life: 14 Hours (Alkaline) Display & Indicators: 1 x Multi-Segment LED (Channel, Group) 1 x LED (Battery Status, Power) Housing: ABS Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm Weight: 7.7 oz / 218 g (without Batteries) + Microphone Form Factor: Handheld Capsule Sound Field: Mono Capsule: Dynamic Polar Pattern: Cardioid Frequency Range: 50 Hz to 16 kHz Sensitivity: 55 dBV/Pa at 1Khz + Packaging Info Package Weight: 3.11 lb Box Dimensions (LxWxH): 13.6 x 11.9 x 4"
