Blackmagic Design / Photo, video & audio equipment

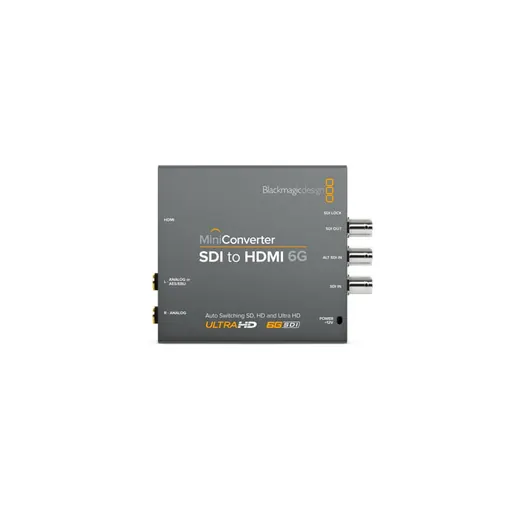

Blackmagic Design CONVMBSH4K6G Mini Converter - SDI to HDMI 6G

SKU KY-41E446C55ABC · Unit: piece

Mini Converter SDI to HDMI 6G lets you convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embeding audio to HDMI, AES/EBU or balanced analog audio. You also get advanced features such a

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design CONVMBSH4K6G Mini Converter - SDI to HDMI 6G Mini Converter SDI to HDMI 6G lets you convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embeding audio to HDMI, AES/EBU or balanced analog audio. You also get advanced features such as down conversion for monitoring Ultra HD on HD HDMI monitors as well as built in 3D LUTs plus HDMI instant lock for instant video display when an SDI input is connected! Connections SDI Video Inputs 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x SDI Video Loop Output. HDMI Video Outputs HDMI type A out. Analog Audio Outputs 2 channels of balanced analog audio. Digital Audio Outputs 4 channels of AES/EBU digital audio SDI Redundant Input Automatically switches over if main SDI input is lost. Multi Rate Support Auto detection of SD, HD or 6G‑SDI. Updates and Configuration USB Reclocking Yes Standards SD Video Standards 625i50 PAL, 525i59.94 NTSC HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST‑2081 SDI Video Rates SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G‑SDI and 6G‑SDI. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV and RGB SDI Auto Switching Automatically detects SD, HD or 6G‑SDI. HDMI Video Standards 625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 HDMI Color Space YUV and RGB HDMI Color Precision 4:2:2 and 4:4:4
