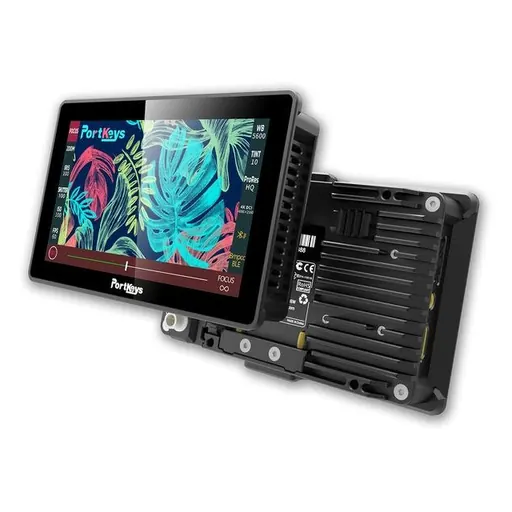

Portkeys BM5 III 5.5" 2200nit Camera Control Monitor

SKU KY-24D79F6A6E95 · Unit: piece

Material: Aluminum alloy+ Touch screen +Toughened glass Picture Size: 5.5" Resolution: 1920x1080 Color: 16.7M HDMI/SDI: 1080p60 Max Power Consumption: 16W Max Brightness: 2200nits Viewing Angle: 178°H

Ask sales to confirm stock, configuration and compatibility.

Product description

1. A bigger screen: from 5.2'' to 5.5'' 2. A whole new peak algorithm 3. Freeze frame 4. Wired control Tilta motors and cursor display 2200Nit New Peaking Image Overlay Image Capture Control Tilta Motors And Cursor Display Wired Camera Control / Wireless Camera Control Color Calibration Before Shipment Milled Aluminum Body Basic Parameters Material: Aluminum alloy+ Touch screen +Toughened glass Picture Size: 5.5" Resolution: 1920x1080 Color: 16.7M HDMI/SDI: 1080p60 Max Power Consumption: 16W Max Brightness: 2200nits Viewing Angle: 178°H/178°V Color Depth: 8bit Contrast: 1000:1 Weight: 351g Functions: 3D LUT, Waveform, Peaking, Histogram, Guides, Zebra, Check Field, Grids, Audio Meters, Tint, Touch Capability, Backlight, Adjustable Fan, Zooming, Image Flip, OSD Flip, Cross Hair, HLG, BMD SDI TALLY, Camera Control, False Color, Anamorphic, 3D LUT SDI Output...... Camera Control Interface: Focus Puller/Camera Remote New Peaking Algorithm Old Peaking Algorithm Supported Camera Models Sony: A9, A7M II, A7R II, A7S II, A7M III, A7R III, A7R IV, A6000, A6300, A6400, A6500, RX100, RX02 (MULTI control line) FS5, FS7, FX6, FX9 (LANC control line) A7S III Canon: 5D MARK III, 5D MARK II, 6D, 6D MARK II, 80D (MINI USB control line) 1DX, 1DX MARK II, 5DS, 5DS R, 5D MARK IV (MICRO USB control line) R5, R6, C70, EOS R C700 PL, C700 GSPL, C300 MARK 2, C300 MARK 2 PL, C200, C200B, C100, C100 MARK 2 (LANC control line) Tilta: NUCLEUS-N, NUCLEUS-M (Tilta NUCLEUS-N/M control line) Panasonic: GH5, GH5S, S1, S1H, S1R, S5, G9, BGH1 Z CAM: E2, E2 S6, E2 F6 (LANC control line) REC key RED BlackMagic: BMPCC4K, BMPCC6K, URSA MINI 4K, URSA MINI 4.6K, URSA MINI PRO 4.6K G2, URSA BROADCAST, CINERA CAMERA 2.7K, CINERA CAMERA 4K, MICRO STUDIO CAMERA 4K (LANC control line) Image Capture Image Overlay Focus puller control: Tilta NUCLEUS-N/M, To be continued more models... Signal input: 3G/HD/SD-SDI、HDMI、USB Signal output: 3G/HD/SD-SDI Battery model: SONY NP-F970/960/F750/F550 Power input interface: 4pin Aviation Connector Delivery date: Ship within 30 days after purchased. What is included in box: BM5 III Monitor 1 Power Cord(Aviation Connector-D-TAP) 1 Power Cord (Aviation Connector-DC) 1 Control Cable 1 Warm Prompt Card 1 Plastic box 1 U-disk(instruction, 3D LUT file, and firmware included) 1 warranty card 1
