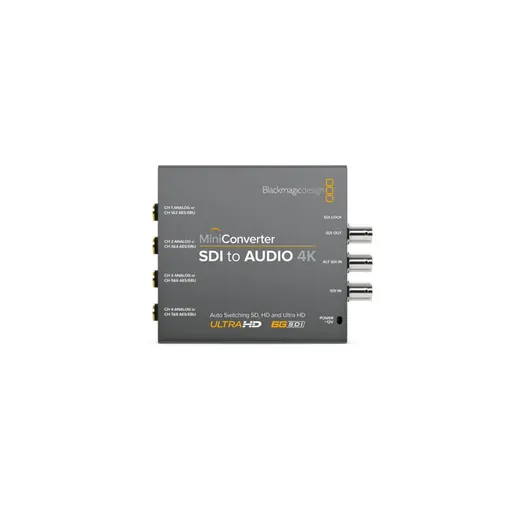

Blackmagic Design CONVMCSAUD4K Mini Converter - SDI to Audio 4K

SKU KY-20B0DE5131FE · Unit: piece

Mini Converter SDI to Audio 4K includes everything you need to de‑embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design CONVMCSAUD4K Mini Converter - SDI to Audio 4K Mini Converter SDI to Audio 4K includes everything you need to de‑embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more! Connections SDI Video Inputs 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x SDI Video Loop Output. SDI Redundant Inputs Automatically switches over if main SDI input is lost. Analog Audio Outputs 4 channels of professional balanced analog audio with standard 1/4 inch jack connections. Digital Audio Outputs 8 channels of professional balanced digital with standard 1/4 inch jack connections. Multi Rate Support Auto detection SD, HD or 6G‑SDI. Updates and Configuration USB Reclocking Yes Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, SMPTE ST-2036, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video connections are switchable between standard definition and high definition. SDI Video Sampling 4:2:2, 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2, 4:4:4 SDI Color Space YUV, RGB SDI Auto Switching Automatically selects between SD, HD, 3G and 6G‑SDI. Software Software Control Mac™ and Windows™ software upgrade via USB. Internal Software Upgrade Via included updater application.
