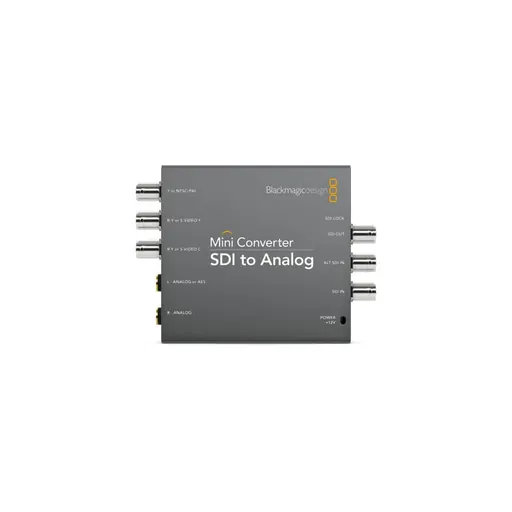

Blackmagic Design CONVMASA Mini Converter - SDI to Analog

SKU KY-19F24DD6E653 · Unit: piece

*convert from SD and HD‑SDI to analog component, s‑video or NTSC/PAL composite *supports all SD and HD input formats up to 1080p30 *includes a down converter for when you need to convert from HD to st

Ask sales to confirm stock, configuration and compatibility.

Product description

Blackmagic Design CONVMASA Mini Converter - SDI to Analog The perfect way to convert from SD and HD‑SDI to analog component, s‑video or NTSC/PAL composite. Mini Converter SDI to analog supports all SD and HD input formats up to 1080p30 and includes a down converter for when you need to convert from HD to standard definition analog formats such as s‑video and composite. Audio can be de‑embedded to balanced analog or AES/EBU. Mini Converter SDI to Analog is ideal for converting to older analog equipment when you don’t need the extra cost of the 6G‑SDI 4K model. Connections SDI Video Inputs 1 x SD, HD or 1.5G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x SDI Loop Output. SDI Rates 270Mb, 1.5G Analog Video Outputs NTSC, PAL, S‑Video and component SD/HD from 1.5G‑SDI input. Analog Audio Outputs 2 channels of professional balanced analog audio with standard 1/4 inch jack connections. Digital Audio Outputs 2 channels of balanced AES/EBU audio. SDI Redundant Input Automatically switches over if main SDI input is lost. Multi Rate Support Auto detection of SD, HD or 1.5G‑SDI. Updates and Configuration USB Reclocking Yes Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, ITU‑R BT.656 and ITU‑R BT.601. SDI Video Rates SDI video connections are switchable between SD and HD. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Auto detection of SD, HD or 3G‑SDI. Analog Video Standards 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60 Analog Color Space YUV Analog Color Precision 4:2:2
