Canare / Audio Interface

Canare L-2.5CHD Black 75 Ohm Digital Video Coaxial Cable - 200 Meter / Roll - Black

SKU KY-14656C089845 · Unit: piece

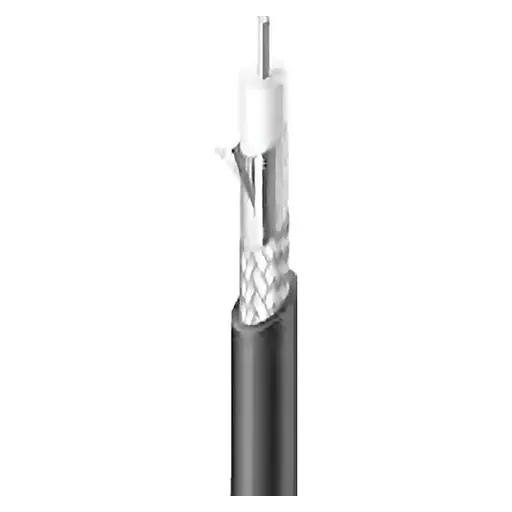

The black 984.25' L-2.5CHD Video Coaxial Cable from Canare is a 75 ohm precision digital video cable that offers the professional broadcaster a high performance, 100% sweep tested, low cost, low loss

Ask sales to confirm stock, configuration and compatibility.

Product description

Specifications: Nom. O.D.: 0.17 in. Wt Std. Lng.: 5.73 lbs Inner Cond Conductor Comp.(AWG): 23 Inner Cond O.D.: 0.02 in. Insulation O.D.: 0.10 in. Outer Conductors Shield Coverage & Comp: .12TA/7/16 (95% or more) Inner Cond. Resistance ohm/mile: 39.95 Outer Cond. Resistance ohm/mile: 10.5 Static Capacity (pF/m): 53 Characteristic Impendence ohm: 75 Attenuation dB/100m(328ft): 30.2
