Smallrig / Photo, video & audio equipment

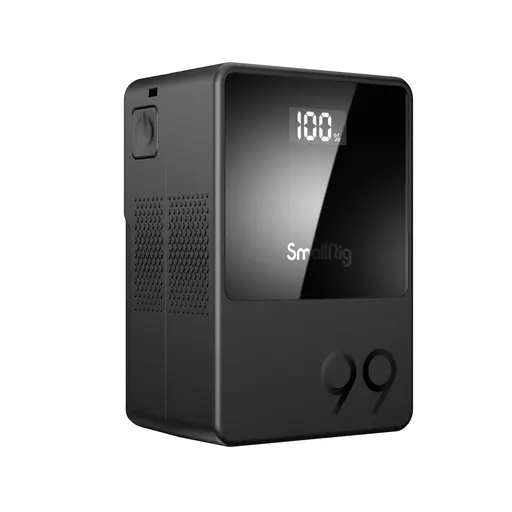

Smallrig VB99 mini V-Mount Vmount Battery 3580B

SKU KY-10DD0B6AE995 · Unit: piece

Upgraded Version (3580B): The upgraded version faster charging at 100W, reducing full charge time from 3 hours to just 2 hours. It features a lighter, more integrated design with enhanced safety using

Ask sales to confirm stock, configuration and compatibility.

Product description

VB99 mini V Mount Battery ID 3580B VB99 mini V Mount Battery 3580B x 1 SmallRig Custom Sticker Set x 1 User Manual x 1 Operation Guide x 1 Guarantee Card x 1 Product Dimensions: 107.0 × 72.0 × 52.2mm / 4.2 × 2.8 × 2.1in Package Dimensions: 146.0 × 113.0 × 74.0mm / 5.8 × 4.5 × 2.9in Product Weight: 584.6g ± 10g / 20.6oz ± 0.4oz Package Weight: 797.6g ± 10g / 28.1oz ± 0.4oz Specifications Items Specifications Material(s): Fire-Resistant PC Material Capacity 14.54V 6800mAh 98.872Wh Rated Discharge Power 100W Input USB-C 100W（Max） D-Tap / BP 6.84A（Max） Output USB-C 5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓5A（Max） USB-A 5V⎓3A﹑9V⎓3A﹑12V⎓2A（Max） BP/D-Tap 10A（Max） 8V-OUT 8V⎓3A（Max） 12V-OUT 12V⎓3A（Max） Charging Protocols USB-C PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A USB-A QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A Cutoff Voltage 11.2V Operating Temperature -15℃ to 60℃ / 5℉ to 140℉ Charging Temperature 0℃ to 45℃ / 32℉ to 113℉ Optional Charging Methods BP port charger, 16.8V D-Tap charger, USB-C Button Function Single-Click Turn off the screen at normal brightness Restore maximum brightness after dimming Illuminate the screen after shutdown or screen blackout Double-Click Switch between displaying voltage and power in charging and discharging mode 3-Second Press Press and hold for 3 seconds to forcibly power off the USB-C, USB-A, and DC ports for discharging. Restore port operation by single-clicking or reinserting the plug
