Canare / Cable-Connector

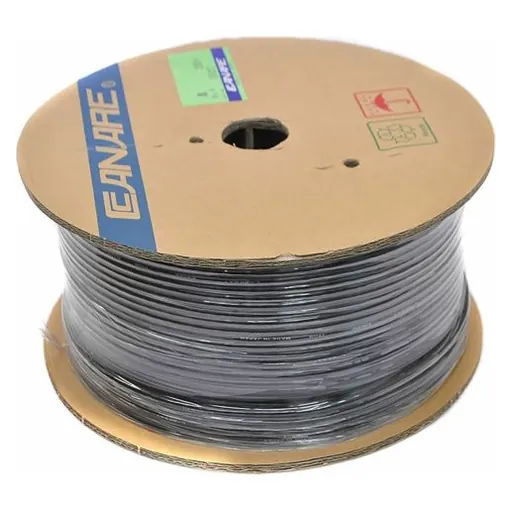

Canare L-5.5CUHD 75 Ohm Coaxial Cable for 12G-SDI (Black, 656'/200m)

SKU KY-08689DBF6476 · Unit: piece

75-Ohm 12G-SDI UHD Video Coax Cable - Full 656'/200m Roll 75 ohm Digital Video Coaxial Cable Ultra Low Loss Coax (12G-SDI) Features Specially designed for 12G-SDI Max. transmission distance of UHD ove

Ask sales to confirm stock, configuration and compatibility.

Product description

Specifications Model: L-5.5CUHD Standard Length ft. (m): 328 (100) 656 (200) 984 (300) Nominal O.D. in. (mm): 0.303 (7.7) Weight lbs (kgs)/100m: 15.65 (7.1) Inner Cond Conductor Comp. (AWG) Q'ty/mm: (16) 1/1.35A Inner Cond O.D. in. (mm): 0.053 (1.35) Insulation O.D. in. (mm): 0.219 (5.55) Outer Conductors Shield Coverage & Comp.: Copper Laminated Tape + 0.12TA/8/24 (91%) Inner Cond. Resistance ohm/km: 12.8 Outer Cond. Resistance ohm/km: 10.3 Static Capacity (pF/m): 52 Characteristic Impendence ohm: 75 Attenuation dB/100m(328ft) @6GHz: 39.1
